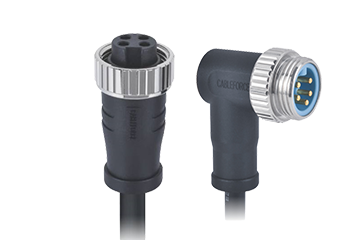

● 3 pin, 4 pin, 5 pin contacts option
● Custom cable specification, molded with PVC, PUR, TPE cable
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● Anti-vibration

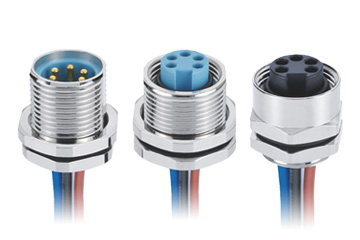

● 3 pin, 4 pin, 5 pin
● PCB contacts, Solder type with (custom wire specification)
● Brass and Stainless steel connector locking screws
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● 3 pin, 4 pin, 5 pin
● Screw wire termination
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● UL94 V-0

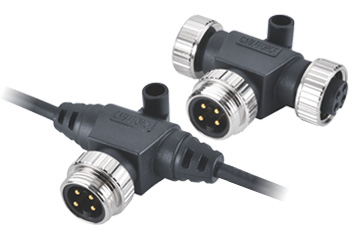

The 7/8" Mini-Change T-Connector split wires into 2 separate connectors, allowing installation of more single or power channel input or output devices to each port of hardwired distribution box. The T-Connectors are mainly designed for various Fieldbus system, such as the cabling of Devicenet, CANbus, Profibus, NMEA 2000 etc…

● Male - Female - Female configurable
● 3, 4, 5 poles are available
● Operating voltage 300V / 60V, Rated current 13A, 8A
● Temperature range: -40°C ~ + 80°C
● IP67 protection degree
The 7/8" Mini-Change terminator is a 7/8" Mini-Change connector molded with a 120 ohm resistor inside, located at each end of the trunk line of DEVICENET, CANopen as well as NMEA 2000. Proper termination helps ensure signal integrity across the entire length of the cable.

● 7/8" Mini-Change 5Pin Plug
● 120 ohm Resistor, +/- 1 ohm, 1/4W
● Ambient temperature: -40°C ~ + 80°C
● IP67 protection degree
