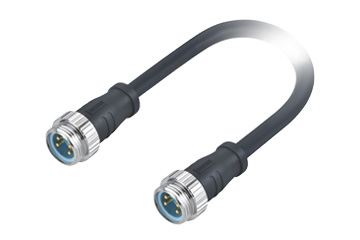

NMEA 2000 Mini Cables, Male to Female Double Ended with 7/8" Mini-Change 5Pin Connectors Molded with 15AWG*1Pair + 18AWG*1P + Drain + Braid, Individually Shielded Twisted Pairs, DeviceNet Cable.

■ Overmolding: TPU, black
■ Phosphor bronze female contacts, Brass male contacts, Gold Plated 3μ", machined solid contacts
■ PA66+GF Plastic coupling screw
■ Temperature rated: -40℃ ~ 80℃
■ Characteristic impedance: 120 ohm +/- 10
■ Connector's mating life: ≥500 times
■ Protection class IP67
