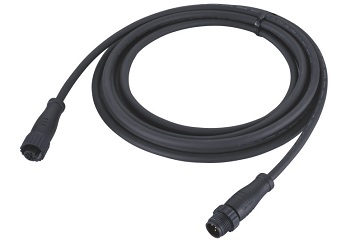

NMEA 2000 Micro Drop Cables, Male to Female Double Ended with M12 A-Coding 5Pin Connectors by Molded with 22AWG*1Pair + 24AWG*1P + Drain + Braid, Individually Shielded Twisted Pairs, PVC DeviceNet Cable
■ Overmolding: TPU, black
■ Phosphor bronze female contacts, Gold Plated 3μ"
■ Brass male contacts, Gold Plated 3μ"
■ PA66 + GF Plastic coupling screw
■ All machined solid contacts
■ Temperature rated: -40℃ ~ 80℃
■ Characteristic impedance: 120 ohm +/- 10
■ Performance material: Hydrolysis, UV resistant
■ Connector’s mating life: ≥200 times
■ Protection class IP67
■ RoHS compliant
