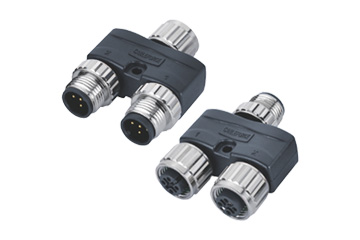

M12 Y-Connector splitters are built in a fixed (Y-Piece) , the M12 Y-Connector splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices and make it possible to cabling more number of sensors and actuators cost-efficiently and easily.

• 3, 4, 5, 8 poles optional
• Male-Female ports configurable
• Un-Shielded and EMI-Shielded options
• Resistant to shocks and vibration
• Temperature range -40 and +80°C
• IP67 protection

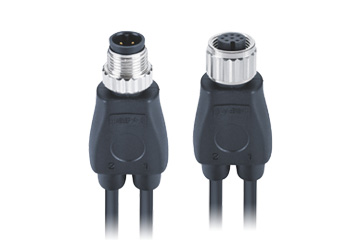

M12 Y-Connector splitters are built in a fixed (Y-Cable) , the M12 Y-Connector splits wires into 2 separate cables, allowing installation of two single-channel input or output devices and make it possible to cabling more number of sensors and actuators cost-efficiently and easily.

• 3, 4, 5, 8 poles optional
• Male-Female ports configurable
• Un-Shielded and EMI-Shielded options
• Resistant to shocks and vibration
• Temperature range -40 and +80°C
• IP67 protection

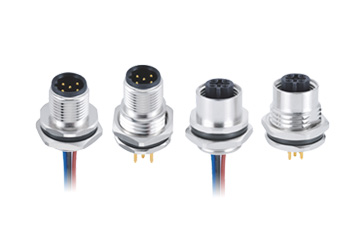

● 3 pin, 4 pin, 5 pin, 6 pins
● PCB contacts, Solder type with (custom wire specification)
● Stainless steel and Plastic connector available
● Voltage rating: 250V, 60V, 30V
● Current rating: 4A, 2A
● IP67 protection degree
● Anti-vibration
