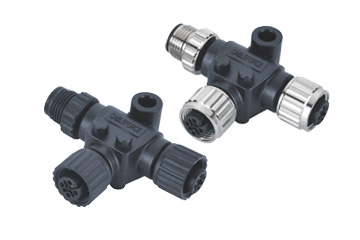

The M12 2 way T-Connector split wires into 2 separate connectors, allowing installation of more single or power channel input or output devices to each port of hardwired distribution box. The T-Connectors are mainly designed for various Fieldbus system, such as the cabling of Devicenet, CANbus, Profibus, NMEA 2000 etc…

● Male - Female - Female configurable
● 3, 4, 5, 8 poles are available
● Shielding and full plastic solutions available
● Operating voltage 250V / 30V, Rated current 4A, 2A
● Temperature range: -40°C ~ + 80°C
● Anti-Vibration
● IP67 protection degree

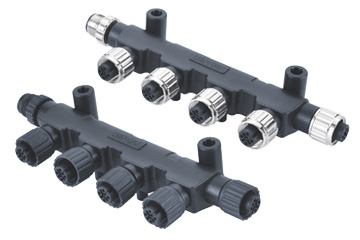

The M12 4 way T-Connector split wires into 4 separate connectors, allowing installation of more single or power channel input or output devices to each port of hardwired distribution box. The T-Connectors are mainly designed for Devicenet and NMEA 2000 etc…

● 1 Male to 4 x Female connectors
● 3, 4, 5 poles are available
● Shielding and full plastic solutions available
● Operating voltage 60V / 30V, Rated current 4A, 2A
● Temperature range: -40°C ~ + 80°C
● Anti-Vibration
● IP67 protection degree

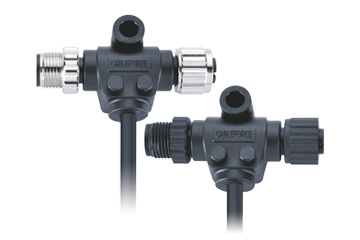

The Micro Power Tap is to compensate the voltage drop at one end and fixed by putting it in the middle of the NMEA 2000 network backbone which provides power to the NMEA 2000 bus with 4 Amps rating M12 5Pin micro connectors, by the way Cableforce manufacture 8A/13A, 18AWG/15AWG Mini version power tap as well.

● Male to female, or female to female T-connectors
● 5 poles with 4 Amps AWG 22 power wires
● Shielded cable with ground wire
● Custom solution of power fuse
● Temperature range: -40°C ~ + 80°C
● Anti-Vibration
● IP67 protection degree

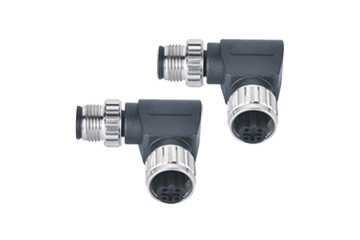

M12 L-Shape Connector with M12 standard connctor, it is the temporary solution for cable extension or converting, CABLEFORCE also welcome specific custom solution requests as well.

● 3Pin、4Pin、5Pin,8Pin options
● Shielded and Un-Shielded versions
● Power fuse can be molded
● Temperature range:-40°C~+80°C
● Anti-Vibration
● IP67 protection degree
