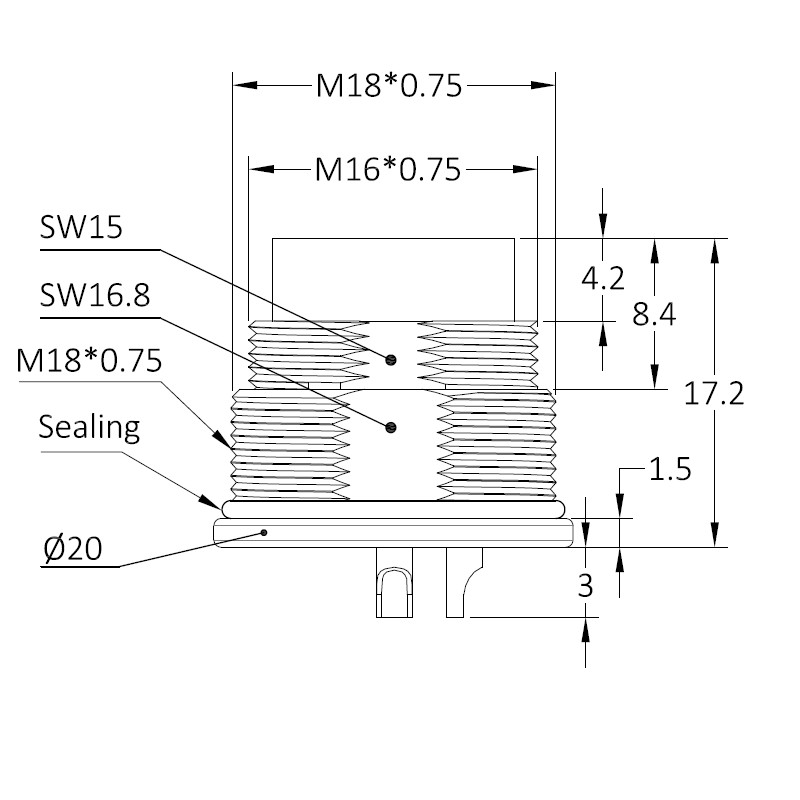

M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread

  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
  • M16 14Pin male panel mount connector with wire soldering cups, front side fastening, M18x0.75 chassis side thread
Part No.:
MD14P1LSAB
Contacts Poles:
14 Pin
Connector Gender:
Male connector
Current Rating:
4 A
Keyway Coding:
A-Coding
EMC Shielding:
Half or partial shielded
Material Stocking:
1000 sets
Production leadtime:
21 days
Product data

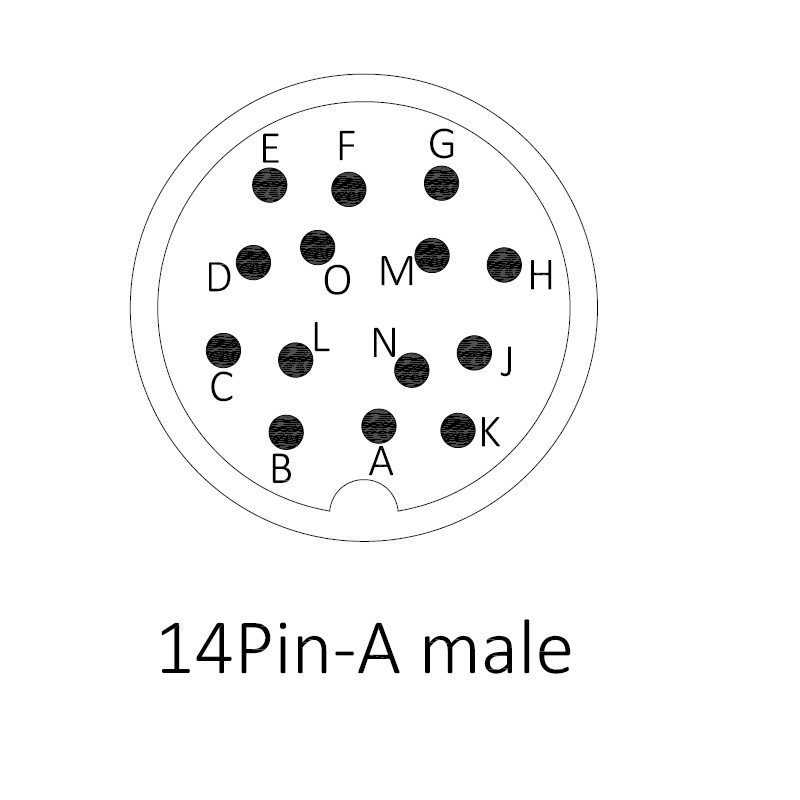

Contacts Poles: 14 Pin
Connector Gender: Male connector
Current Rating: 4 A
Voltage Rating: 60V
Keyway Coding: A-Coding
EMC Shielding: Half or partial shielded
Straight/ 90° Angled: 180° Straight
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 105°C
Contacts Material: Brass, machined solid pin
Contacts Plating: 3μ" Gold plating thickness
Inserts: PA66 + GF
Sealing: Epoxy resin, O-Ring
Housing/ Outer Shell: Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 3-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-106
Panel locking side: Front side fastening the nut
机械参数
Description
M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 and IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.


● 5 pin, 6 pin, 7 pin, 8 pin, 12 pin, 14 pins
● PCB contacts, Solder type with either solder cup or customized wires
● Brass and Stainless steel connector locking screws
● Voltage rating: 300V, 125V, 60V
● Current rating: 8A, 4A
● IP67 protection degree

CABLEFORCE Products Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
