7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable

  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
  • 7/8" Mini Change 5pin male to female double ended, with 5m 1Px18AWG+1Px15AWG5 DeviceNet Thick PVC violet cable
Part No.:
MF05C3LCAB16CV50-DVN
Contacts Poles:
05 Pin
Cable Length:
5 m
Connector Gender:
Male to female connector, double ended
Cable Jacket:
PVC
Voltage Rating:
300V
EMC Shielding:
Un-shielded
Products Certification:
CE/ EMC
Material Stocking：
1000 sets
Production leadtime：
21 days
Get Quotation Now !
Product data
Contacts Poles: 05 Pin
Cable Length: 5 m
Connector Gender: Male to female connector, double ended
Cable Jacket: PVC
Current Rating: 8 A
Wire Gauge (size): 18AWG/ 0.75mm², 15AWG/ 1.5mm²
Voltage Rating: 300V
Wire Insulation: PVC
Keyway Coding: A-Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Violet
Contacts Termination: Crimping
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin, Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V2
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant, REACH compliant
Products Certification: CE/ EMC
Charateristic Impedance: 120Ω +/-12

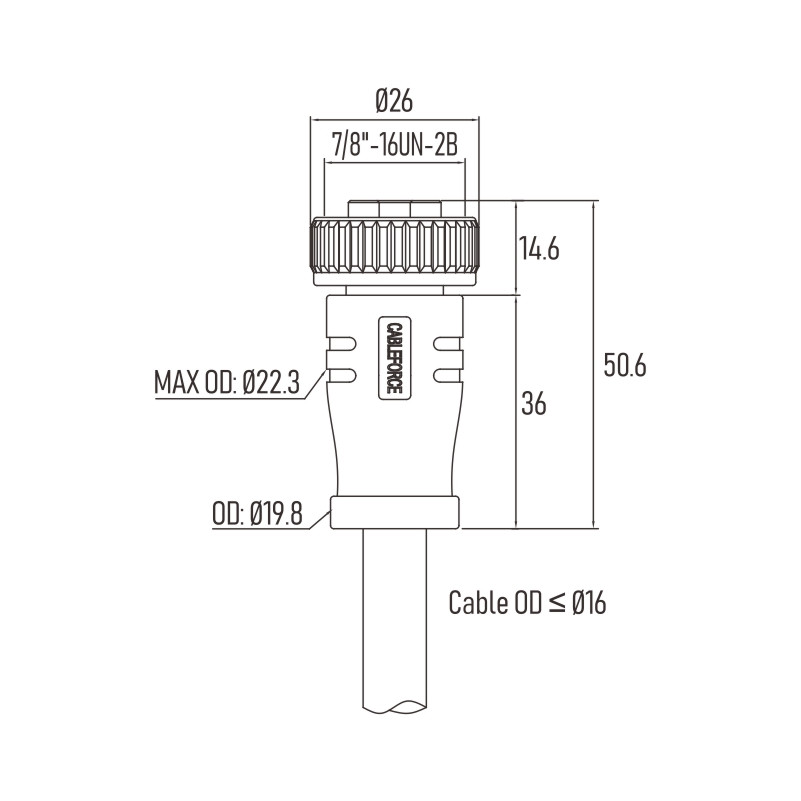

机械参数
