CABLEFORCE has developed M12 S-Code AC power connectors with M12 screw locking, designed for electrical and electronic equipment; CABLEFORCE offers M12 S-Coding cordsets premolded cables and panel mount receptacle for flange mounting. The S-Coded connectors are IP67 rated ensuring protection from liquids and debris. Gold plated contacts with crimp termination provide high endurance and low contact resistance electrical performance. The connectors are rated up to 630 V AC and 12 Amps per contact.

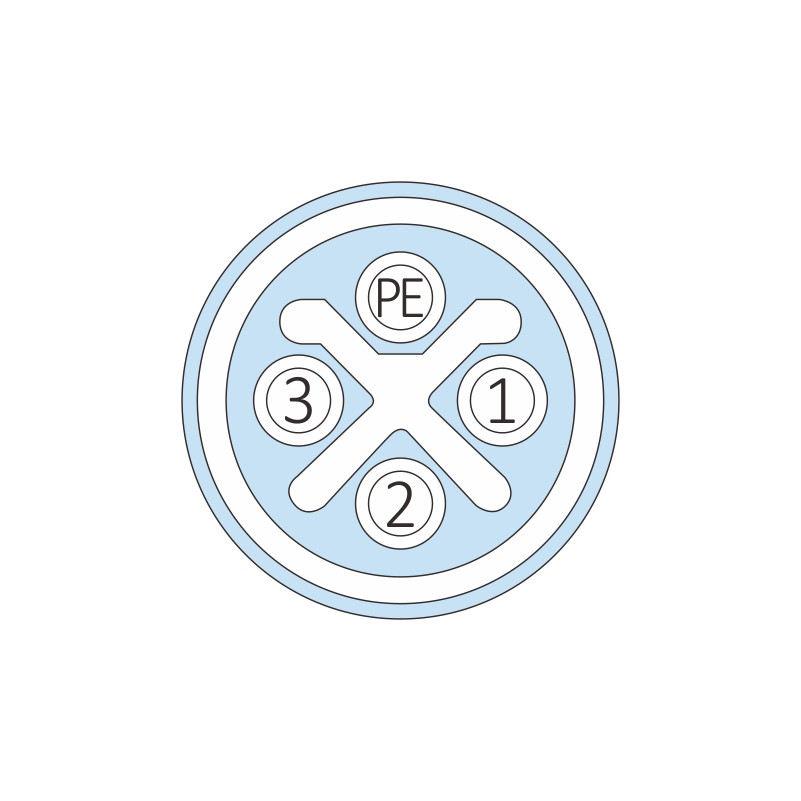

● S-Code, 4Pin (3+PE)
● PVC, PUR cable materials

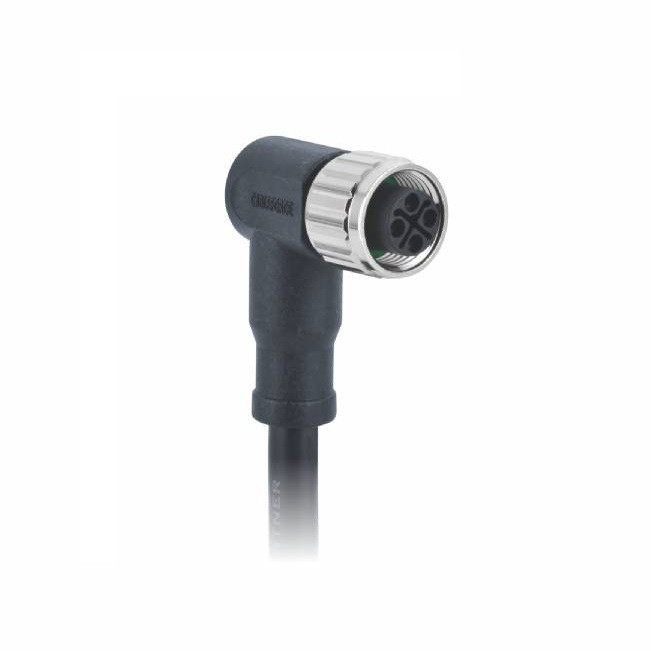

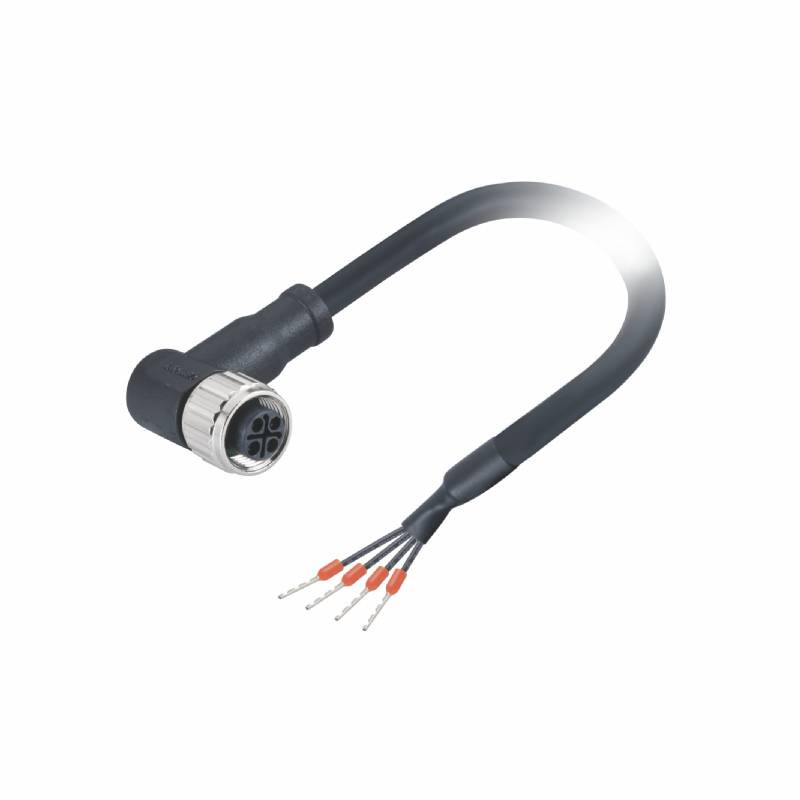

● Cordsets with male/ female, straight/ right angled connector
● Panel receptacle with either prewired or PCB solder contacts
● Custom cable specification, e.g. custom cable material, shielding and lengths
● Rated: 630V AC/ 12A
● Protection degree IP67
