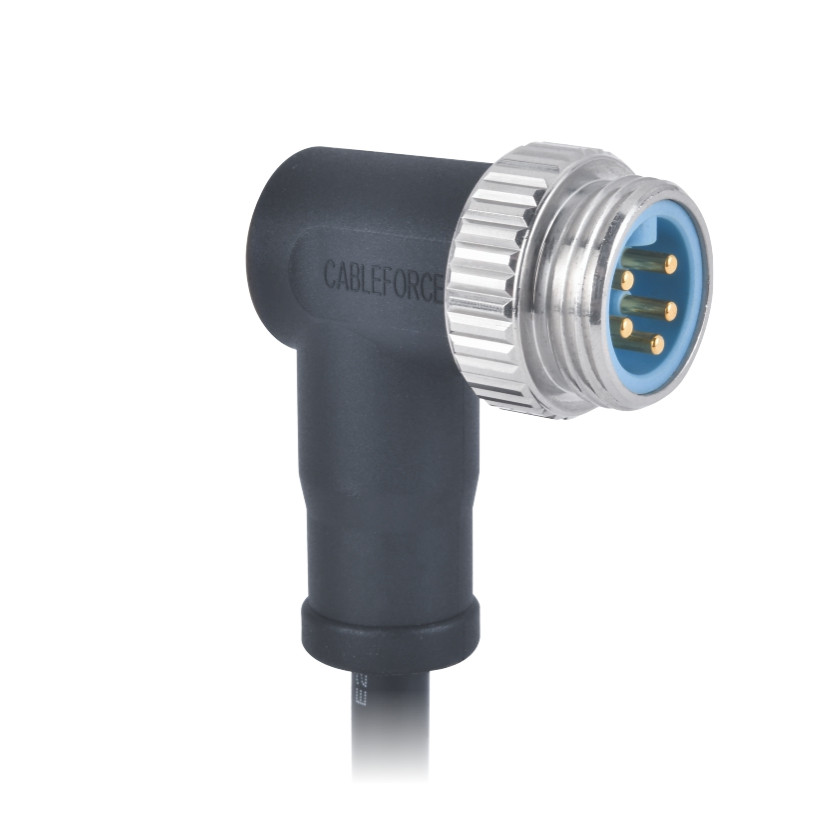

7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable

  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
  • 7/8" Mini-Change 5Pin male right angled connector molded with 5x16AWG (1.5mm²) cable
Part No.:
MF05C1RCAB-16xx xx

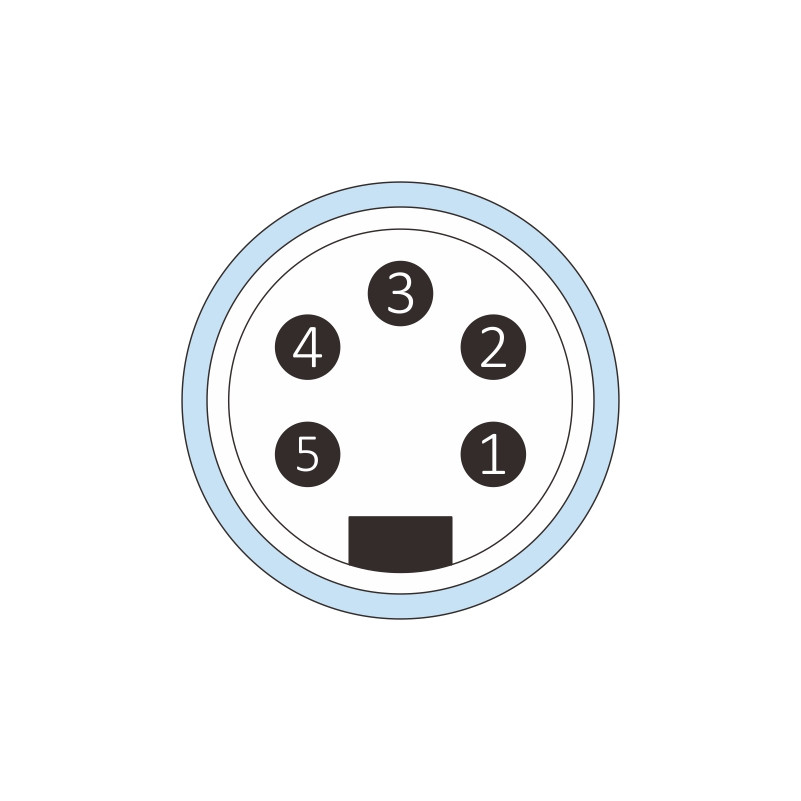

Contacts Poles:
05 Pin
Connector Gender:
Male connector
Cable Jacket:
PVC, PUR, halogen-free, Custom cable material
Current Rating:
8 A
Wire Gauge (size):
16AWG/ 1.5mm²
Keyway Coding:
A-Coding
EMC Shielding:
Un-shielded
Material Stocking:
2000 sets
Production leadtime:
25 days
Product data
Contacts Poles: 05 Pin
Cable Length: Customized lengthes
Connector Gender: Male connector
Cable Jacket: PVC, PUR, halogen-free, Custom cable material
Current Rating: 8 A
Wire Gauge (size): 16AWG/ 1.5mm²
Voltage Rating: 300V
Wire Insulation: PVC
Keyway Coding: A-Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 90° right angled
Cable Color: Black
Contacts Termination: Crimping
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant, Anti-Vibration, Crosion resistant, Hydrolysis resistant, Oil resistant
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0, UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Products Certification: CE/ EMC

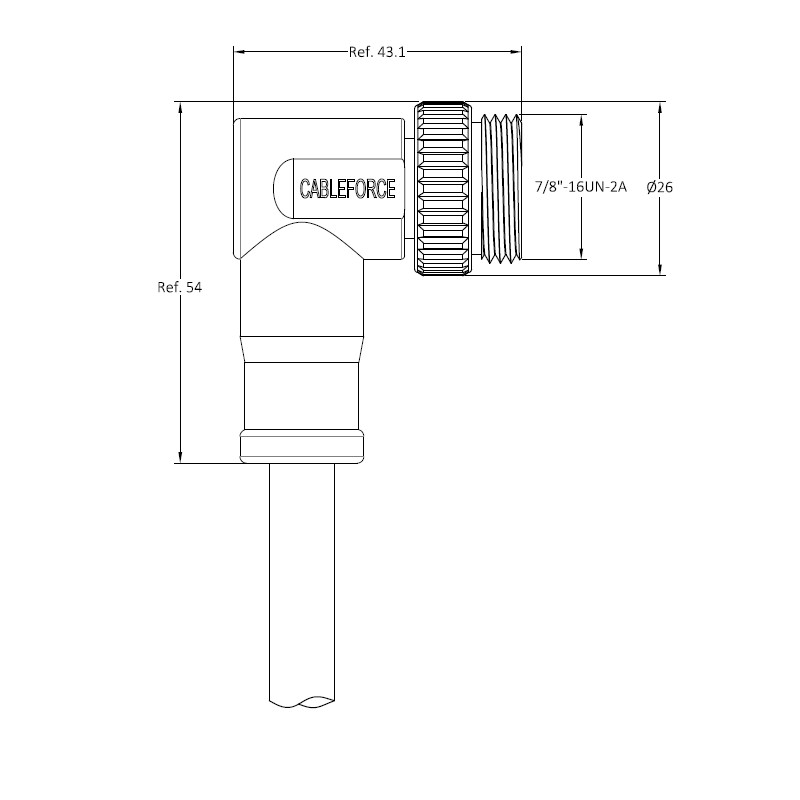

机械参数
Description

7/8 inch threaded locking mechanism connector is one of the most important connectors in factory automation and Fieldbus. The 7/8" connectors designed for both power supply and signal transmission, widely used in sensors and actuators, electric motors, packaging and transfer system, outdoor LED module, NMEA 2000 marine navigation and DeviceNet. CABLEFORCE developed and designed the 7/8" plugs and receptacles under the consideration of different harsh industrial conditions and climatic environments.

● 3P, 4P, 5Pin are available

● Molded cable type, field installable plugs, panel receptacles and T-Splitter options
● Custom cable specification
● Degree of protection IP 67

● Operating voltage 300V/250V;

● Current range: 13A, 8A

CABLEFORCE Cable Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
