Part No.:
MC04TR-MFASB
Contacts Poles:
04 Pin
Connector Gender:
Male to female connector, double ended
Current Rating:
4 A
Wire Gauge (size):
22AWG/ 0.34mm²

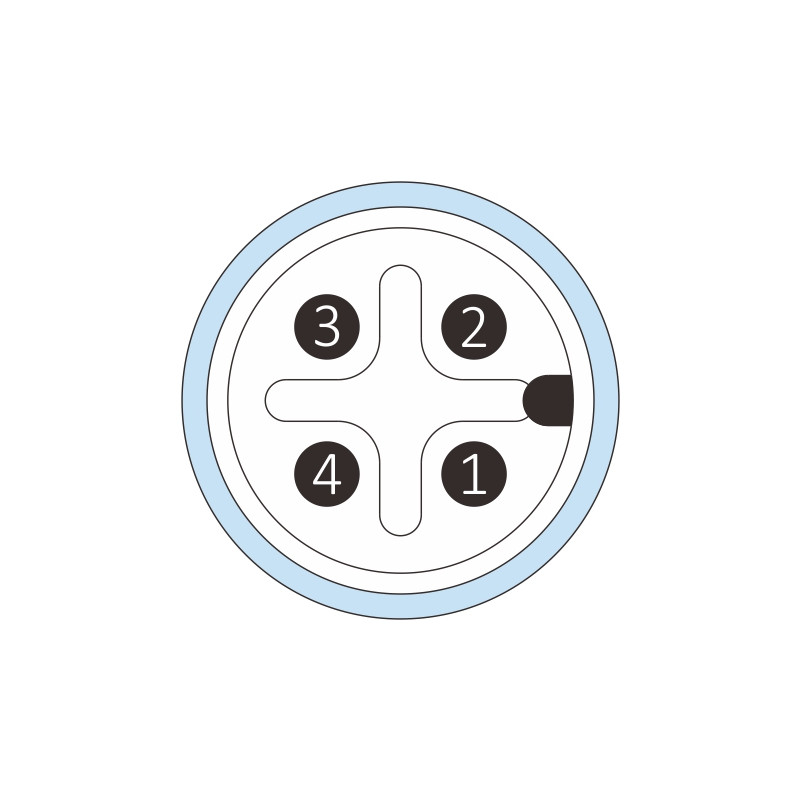

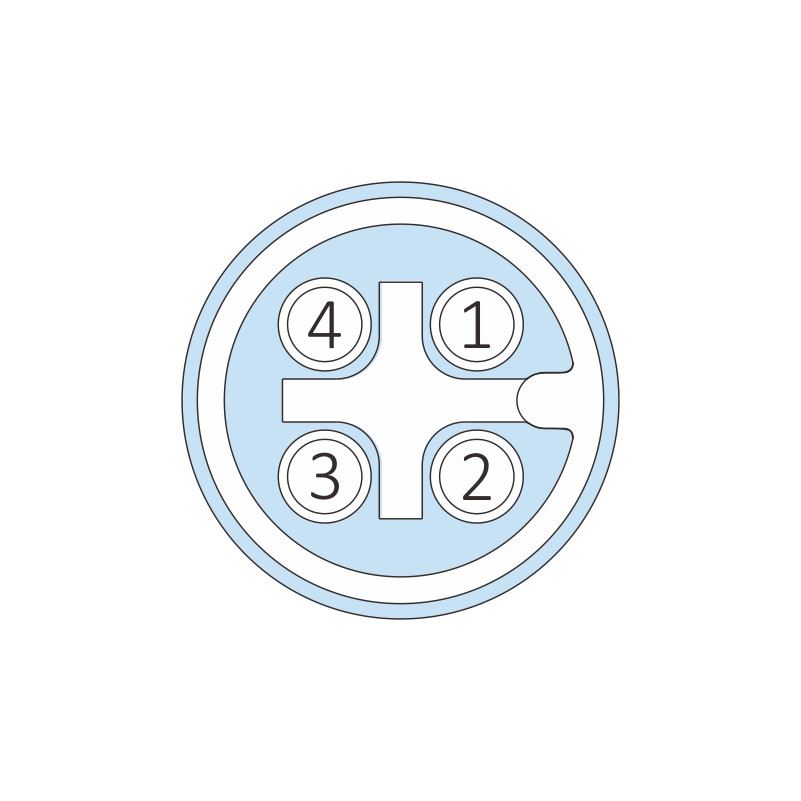

Keyway Coding:
A-Coding
EMC Shielding:
360° fully shielded
Material Stocking：
1000 sets
Production leadtime：
15 days
Get Quotation Now !
Product data
Contacts Poles: 04 Pin
Connector Gender: Male to female connector, double ended
Current Rating: 4 A
Wire Gauge (size): 22AWG/ 0.34mm²
Voltage Rating: 250V
Keyway Coding: A-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 90° right angled
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin, Brass, machined solid pin
Contacts Plating: 3μ" Gold plating thickness
Inserts: TPU + GF, PA66 + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-101

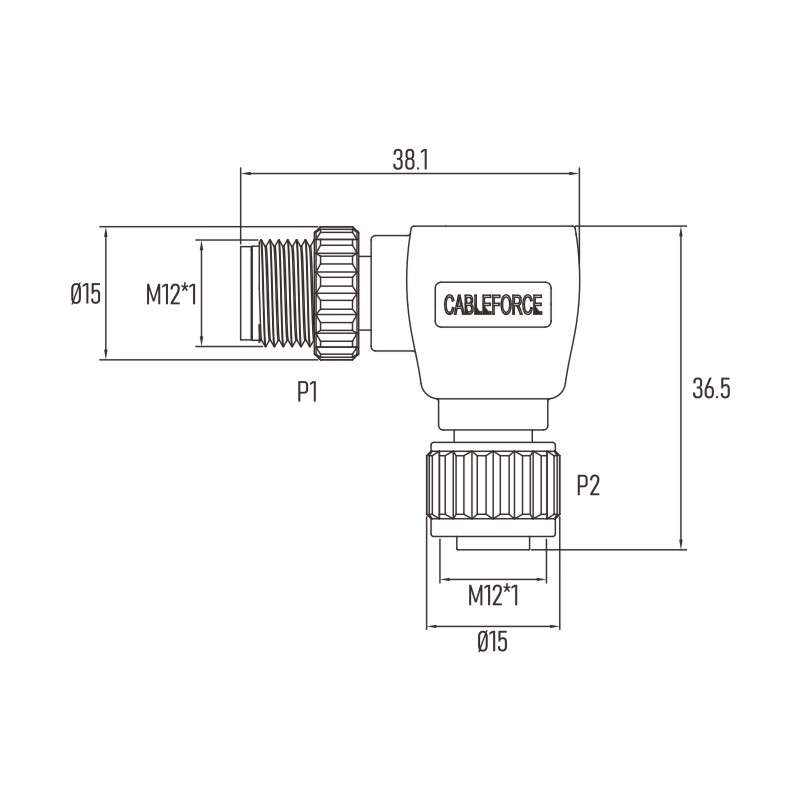

机械参数
Description

The M12 L-Type angled adapter or joiner transfer the a siginal into another system, allowing the installation of one more single or power channel input or output devices. it allows input or output signals to run or trigger devices simultaneously.


● Male - Female configurable

● Un-shielded and Shielded options

● 3, 4, 5, 8 poles and plastic connectors are available
● Operating voltage 250V / 30V, Rated current 4A, 2A
● Temperature range: -40°C ~ + 80°C
● Anti-Vibration and IP67 protection degree



CABLEFORCE Products Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant，Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
