M12 T-Code female, shielded, molded EN45545, NFPA130 certified 3x0.75mm2 LSZH shielded cable

Part No.:: MC04C2LCTSB18LK10R-S

Cable Length:: 1 m

Connector Gender:: Female connector

Wire Gauge (size):: 18AWG/ 0.75mm²

Keyway Coding:: T-Coding

EMC Shielding:: 360° fully shielded

Straight/ 90° Angled:: 180° Straight

Material Stocking：: 1000 sets

Production leadtime：: 60 days

Get Quotation Now !

Product data

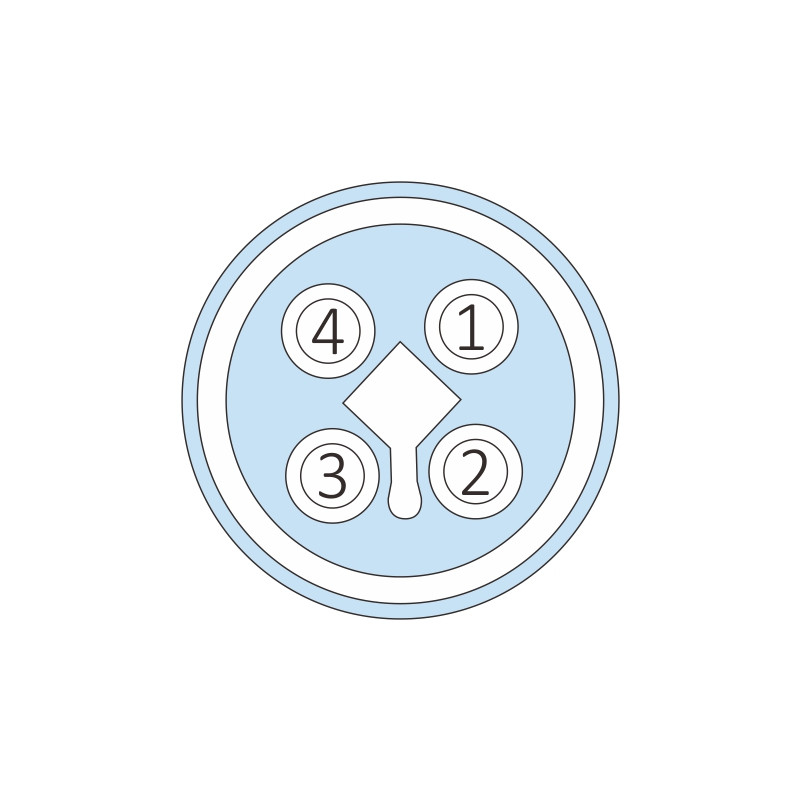

Contacts Poles: 04 Pin

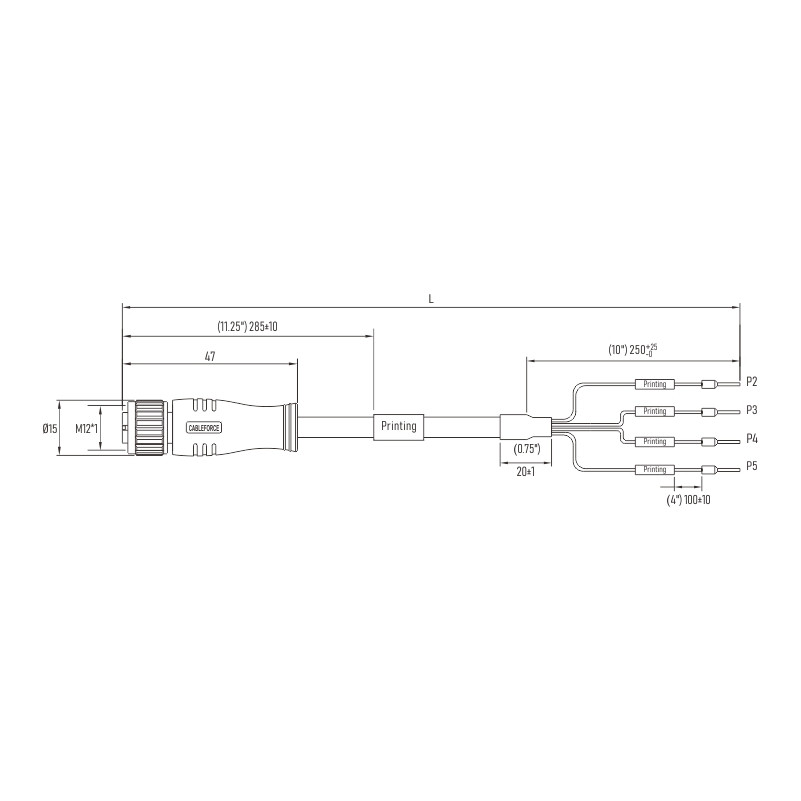

Cable Length: 1 m

Connector Gender: Female connector

Cable Jacket: LSZH

Current Rating: 8 A

Wire Gauge (size): 18AWG/ 0.75mm²

Voltage Rating: 63V

Wire Insulation: PE

Keyway Coding: T-Coding

EMC Shielding: 360° fully shielded

Straight/ 90° Angled: 180° Straight

Cable Color: Black

Contacts Termination: Soldering

Temperature Rating: -40°C ~ + 105°C

Contacts Material: Brass, machined solid pin

Contacts Plating: 3μ" Gold plating thickness

Cable Features: UV-Resistant, Anti-Vibration, Crosion resistant, Hydrolysis resistant, Oil resistant, , Weld Splatter Resistant, High Temperature Resistant

Inserts: TPU + GF

Overmolding: TPU

Locking Screws: Brass with nickel plated

Contact Resistance: ≤5mΩ

Insulation Resistance: ≥ 100 MΩ

Protection Degree: IP 67

Pollution Degree: III

Connector Flamability: UL94 V0

Waterproof Depth: IP67 1m depth 30 minutes

Plug Mating Life: 500 times

Warranty: 15-years quality guarantee period

Compliance: RoHS compliant, LSZH (Low Smoke Zero Halogen)

Reference Standard: IEC 61076-2-111

Products Certification: UL Certified, CUL Certified, CE/ EMC, IP67

Description

With years of experience in the custom cable for rail transit application enable CABLEFORCE providing wide range of products in a complete line of sizes (AWG and mm²) and safe dependable cable with high-grade crosslinked jacket cables.

• Single core power, control and instrumentation – 600V and 2KV
• Multi-core shielded and unshielded cables
• Cat 5e, Cat 6A, Cat 7 Ethernet category
• Low Smoke Zero Halogen insulations and jackets
• Wide temperature range –55°C to 125°C
• Superior mechanical properties
• Flexible construction
• Flame retardant
• Excellent hydrolysis and oil resistance
• Moisture and sunlight resistant
• RoHS compliant
