M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal

  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
  • M12 A-Coded 5Pin male connector, 1m CANopen micro cable, 1PxAWG24 + 1Px22AWG, PVC Jacket, Violet Color, end with wire terminal
Part No.:
MC05C1LSAB24CV10-CAN-T
Contacts Poles:
05 Pin
Cable Length:
1 m
Connector Gender:
Male connector
Cable Jacket:
PVC
Voltage Rating:
60V
EMC Shielding:
Half or partial shielded
Products Certification:
UL Certified, CE/ EMC
Material Stocking:
2000 sets
Production leadtime:
28 days
Product data
Contacts Poles: 05 Pin
Cable Length: 1 m
Connector Gender: Male connector
Cable Jacket: PVC
Current Rating: 4 A

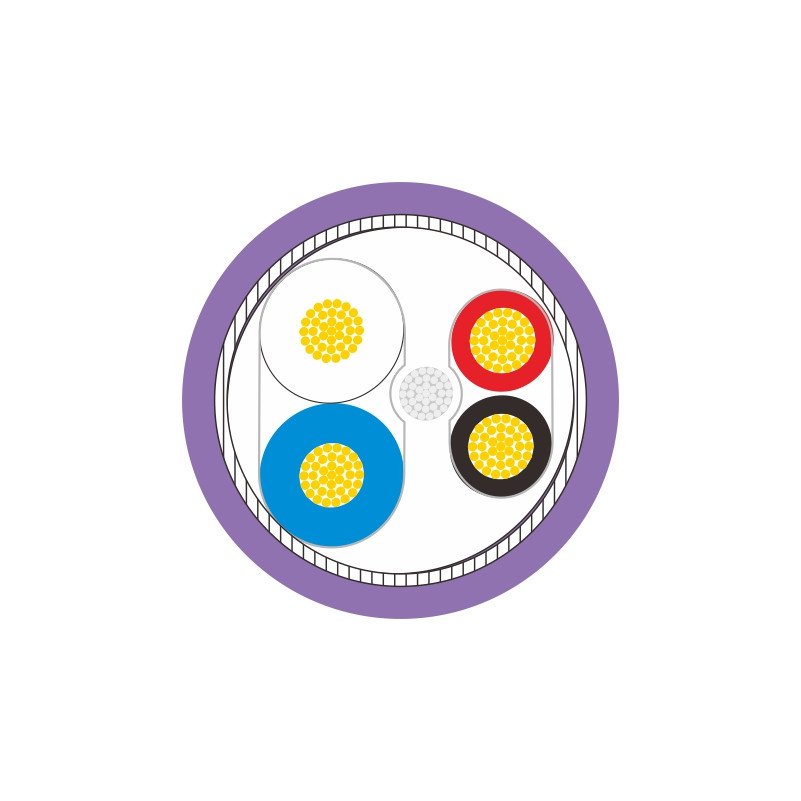

Wire Gauge (size): 24AWG/ 0.25mm², 22AWG/ 0.34mm²
Voltage Rating: 60V
Wire Insulation: PVC, Foamed PE

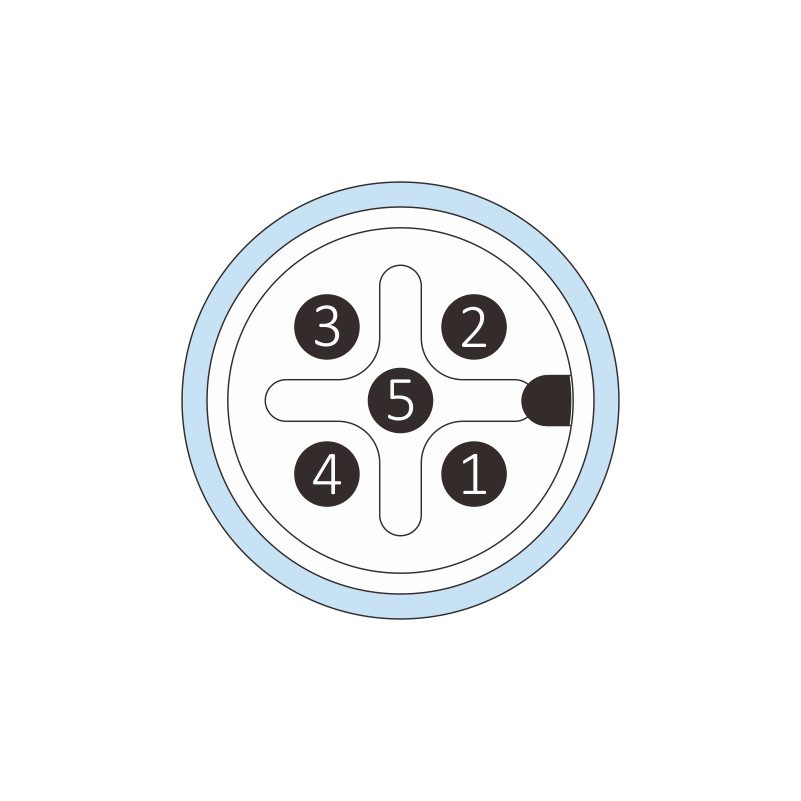

Keyway Coding: A-Coding
EMC Shielding: Half or partial shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Violet
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant
Inserts: PA66 + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67, IP 69K
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-101, DeviceNet, CANopen
Products Certification: UL Certified, CE/ EMC
Charateristic Impedance: 120Ω +/-12

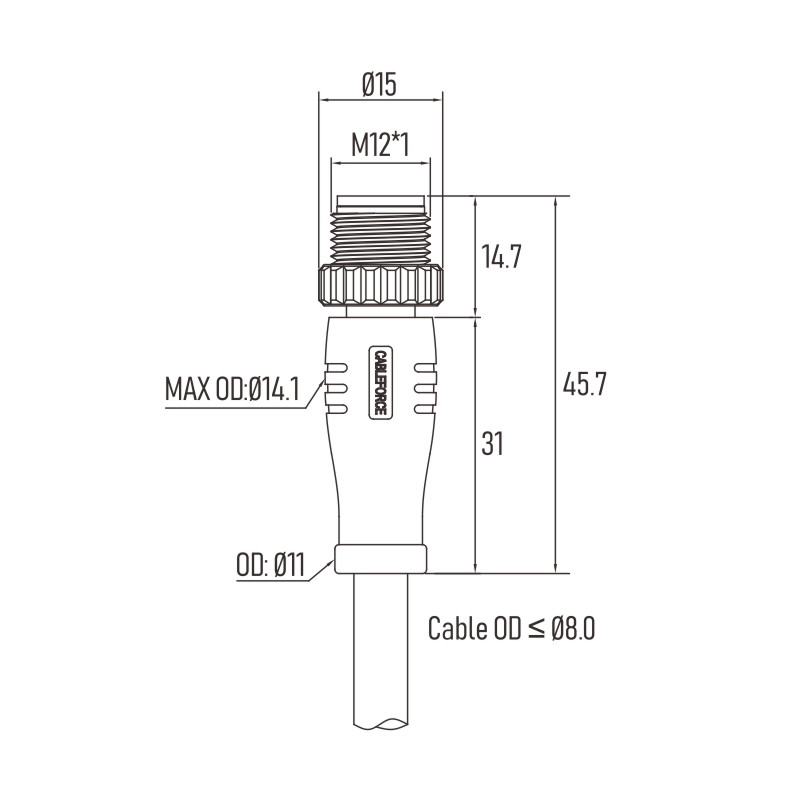

机械参数
Description

CABLEFORCE offers tailor-made industrial CANopen, CANbus, DeviceNet and NMEA 2000 cables and cordsets. Our wide offering of fieldbus cables offers compatibility with most major fieldbus protocols, including PROFIBUS, DeviceNet™, CAN Bus, CC-Link and ASI Bus and industrial Ethernet PROFINET, EtherCAT, EtherNet/IP™ and other industrial Ethernet protocols with bandwidth from Cat 5e, Cat 6A to Cat7.

We provide customers with the following cable custom services:

Custom cable color and length, custom print and labeling as well as packaging
Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.
