M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable

  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
  • M12 A-Code 8Pin male, straight, single ended, shielded, molded 5m Cat 6A S/FTP 4x2x26AWG PVC Ethernet cable
Part No.:
MC08C1LSASB26CG50

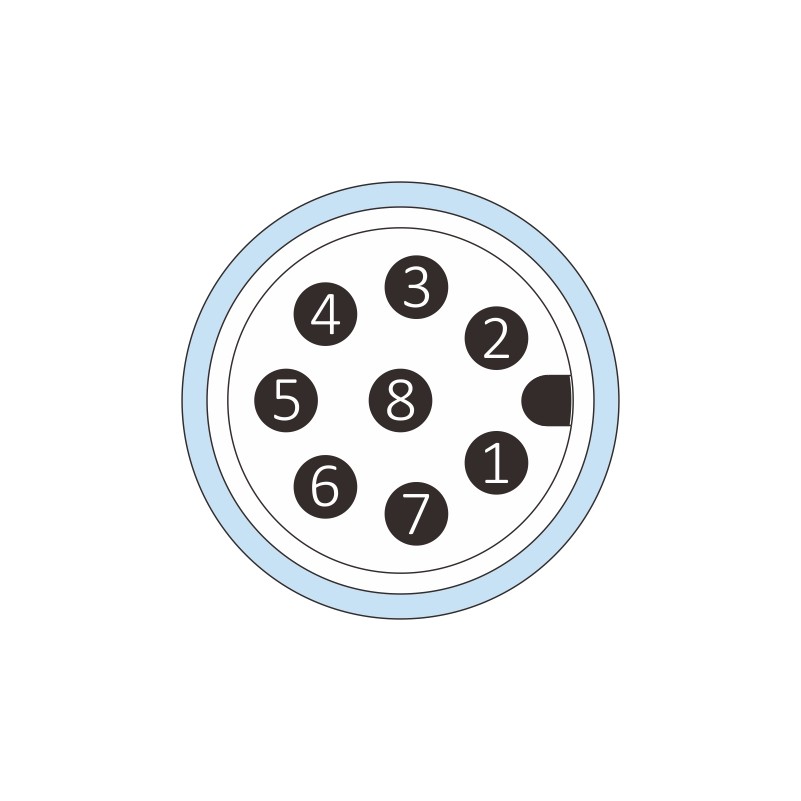

Contacts Poles:
08 Pin
Cable Length:
5 m
Connector Gender:
Male connector
Cable Jacket:
PVC
Voltage Rating:
30V
EMC Shielding:
360° fully shielded
Products Certification:
UL Certified, CE/ EMC, IP67
Material Stocking:
500 sets
Production leadtime:
21 days
Product data
Contacts Poles: 08 Pin
Cable Length: 5 m
Connector Gender: Male connector
Cable Jacket: PVC
Current Rating: 2 A

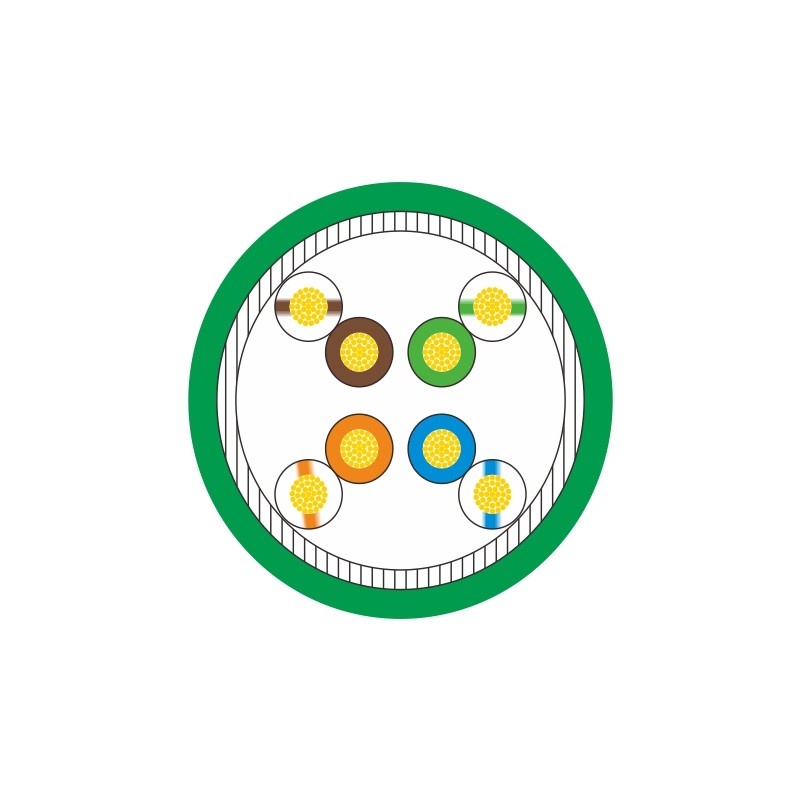

Wire Gauge (size): 26AWG/ 0.14mm²
Voltage Rating: 30V
Wire Insulation: Foamed PE
Keyway Coding: A-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Green
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: Anti-Vibration, Hydrolysis resistant, Oil resistant, High Speed Transmission
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-101, Profinet, EtherCAT
Products Certification: UL Certified, CE/ EMC, IP67
Drag chain bending life: 2 million cycles
Charateristic Impedance: 100Ω +/-12
Ethernet Catagory: Cat 6A (10Gbps/ 500Mhz)

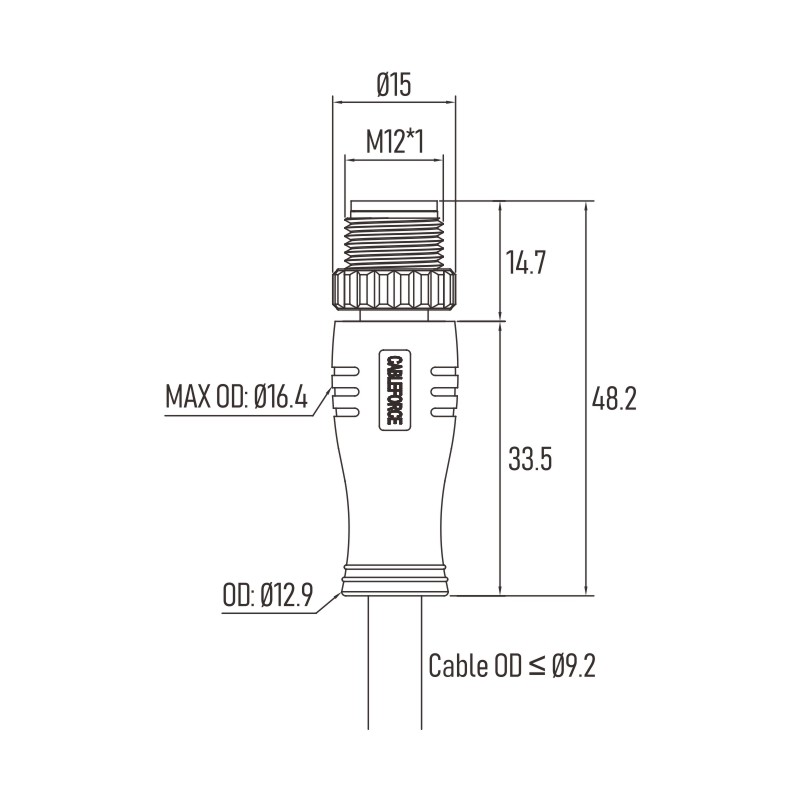

机械参数
Description
Cableforce's Cat 5E, Cat 6a, Cat7 ethernet cables are customized and developed for harsh industrial working environment and requirements. We managed to produce high performance net cables to meet various industrial network cabling requirements, such as high and low temperature resistant, hydrolysis resistant, oil resistant, corrosion resistant, UV resistant, bending resistant, abrasion resistant, drag chain moving, good EMC/EMI Shielded, long distance transmission distance.The ethernet cables produced by CABLEFORCE ensure the users with following quality features:

● Excellent cable cutting, stripping and crimping processing skills
● Select or customize right network cables for customers base on the application requirements
● Thick gold-plated RJ45 plug with good copper alloy conductor ensure above 500 times mating life
● Multi stranded copper wires improve the flexibility and bending life of net cable
● Professional wire's twisting, insulation impedance and good shielding design provide reliable transmission performance
● 100% professional outgoing inspection ensure we delivred reliable cable products
