Description

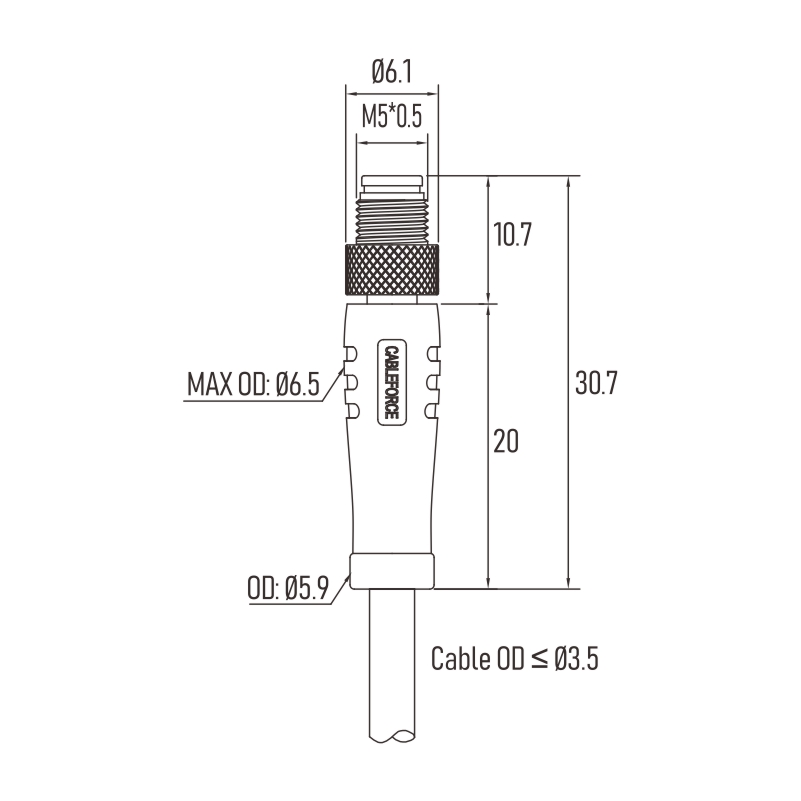

M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors
within a very small area. The product line offers 3 and 4 Pins cable cord-sets and a range of panel-mounted receptacles. All
connectors are either factory PVC/PUR over-molded or panel receptacles supplied with single wires or PCB solder pins, which is
very compact and convenient for the application in narrow installment places.
● Cable plugs and panel receptacles are available
● Cable length base on customer requesting
● TPU over molded, IP67 protection degree

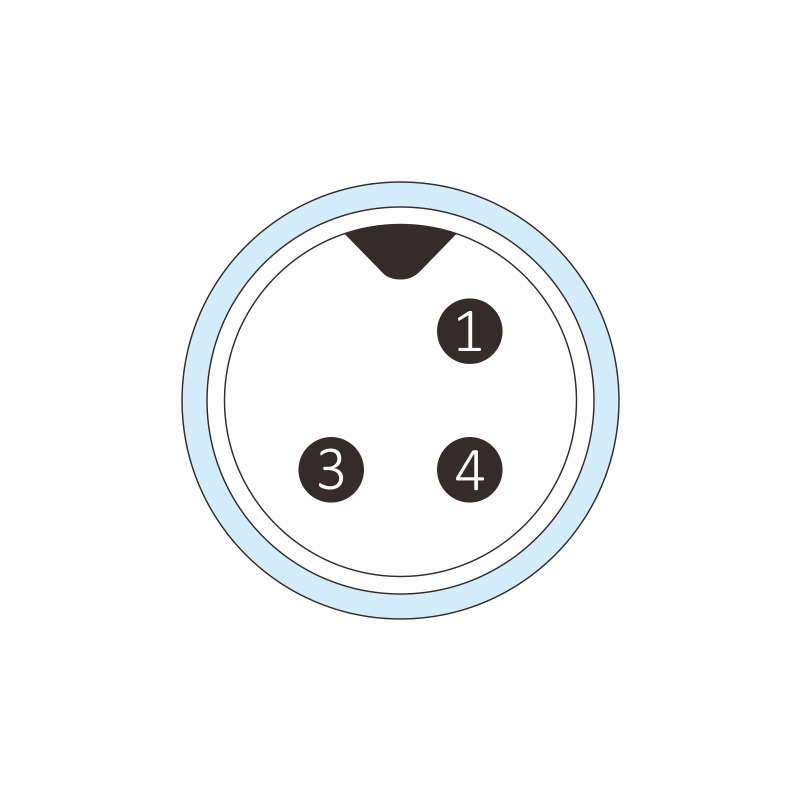

● 3, 4 poles per connector are available
● Operating voltage 60V,
● Operating current 1A
