M5 4Pin male connector molded with 4x26AWG cable free end

  • M5 4Pin male connector molded with 4x26AWG cable free end
  • M5 4Pin male connector molded with 4x26AWG cable free end
  • M5 4Pin male connector molded with 4x26AWG cable free end
  • M5 4Pin male connector molded with 4x26AWG cable free end
Part No.:
MA04C1LSAB-26xx xx
Contacts Poles:
04 Pin
Connector Gender:
Male connector
Cable Jacket:
PVC, PUR, halogen-free, Custom cable material
Current Rating:
1 A
Wire Gauge (size):
26AWG/ 0.14mm²
Keyway Coding:
A-Coding
EMC Shielding:
Un-shielded
Material Stocking:
100 sets
Production leadtime:
3 days
Product data
Contacts Poles: 04 Pin
Cable Length: Customized lengthes
Connector Gender: Male connector
Cable Jacket: PVC, PUR, halogen-free, Custom cable material
Current Rating: 1 A
Wire Gauge (size): 26AWG/ 0.14mm²
Voltage Rating: 60V
Wire Insulation: PVC
Keyway Coding: A-Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Black
Contacts Termination: Soldering
Temperature Rating: -20°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 1μ" Gold plating thickness
Cable Features: UV-Resistant, Hydrolysis resistant
Inserts: TPU
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤10mΩ
Panel Cut Size: M5x0.5
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: II
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 100 times
Suitable Cable Diameter: PG7 (3 ~ 5mm)
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-105
Products Certification: CE/ EMC, CE/ LVD, IP67

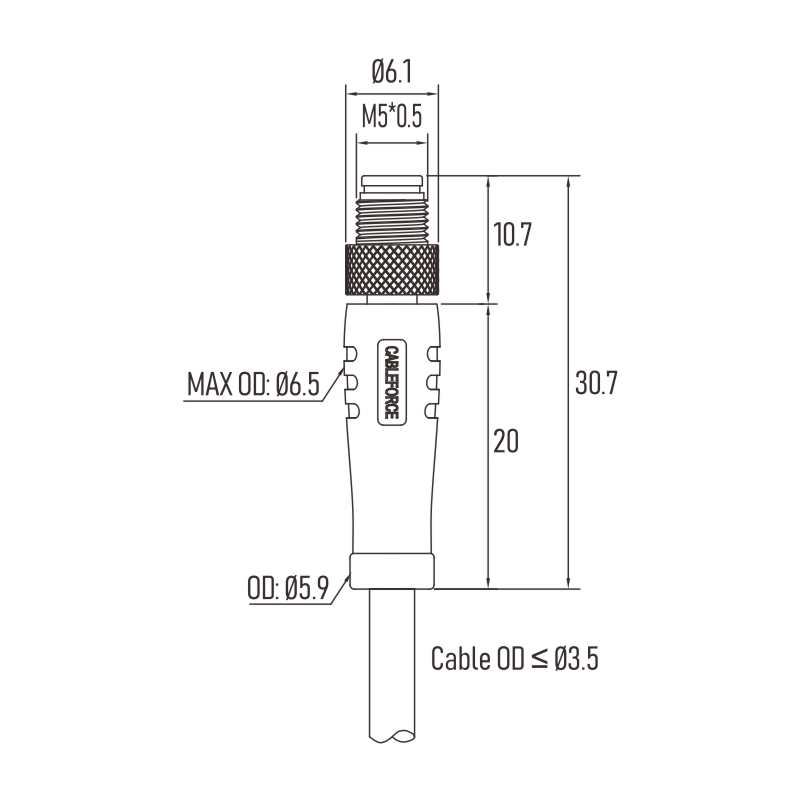

机械参数
Description

M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area. The product line offers 3 and 4 Pins cable cord-sets and a range of panel-mounted receptacles. All connectors are either factory PVC/PUR over-molded or panel receptacles supplied with single wires or PCB solder pins, which is very compact and convenient for the application in narrow installment places.


● Cable plugs and panel receptacles are available
● Cable length base on customer requesting
● TPU over molded, IP67 protection degree
● 3, 4 poles per connector are available
● Operating voltage 60V, current 1A
