M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable

  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
  • M12 A-Code 8Pin male straight connector, 360° shielded, molded with 8x24AWG cable
Part No.:
MC08C1LSASB-24xx xx

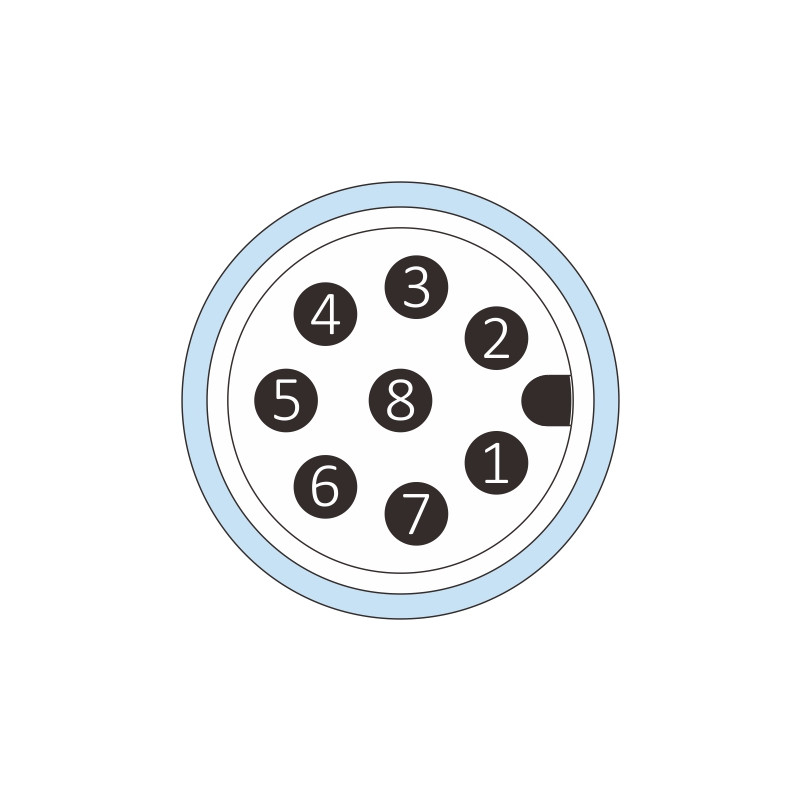

Contacts Poles:
08 Pin
Connector Gender:
Male connector
Cable Jacket:
PVC, PUR, halogen-free, TPE 90℃, Custom cable material
Current Rating:
2 A

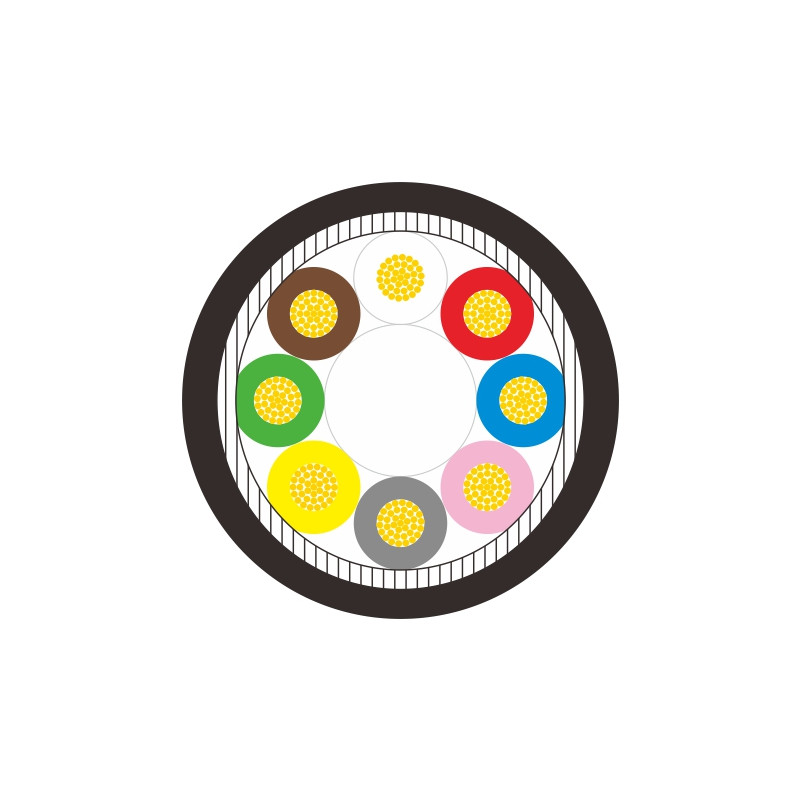

Wire Gauge (size):
24AWG/ 0.25mm²
Keyway Coding:
A-Coding
EMC Shielding:
360° fully shielded
Material Stocking:
10000 sets
Production leadtime:
15 days
Product data
Contacts Poles: 08 Pin
Cable Length: Customized lengthes
Connector Gender: Male connector
Cable Jacket: PVC, PUR, halogen-free, TPE 90℃, Custom cable material
Current Rating: 2 A
Wire Gauge (size): 24AWG/ 0.25mm²
Voltage Rating: 30V
Wire Insulation: PVC, PP, HDPE
Keyway Coding: A-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Black, Orange, Yellow, Gray
Contacts Termination: Soldering
Temperature Rating: -25°C ~ + 80°C, -40°C ~ + 105°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant, Hydrolysis resistant
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67, IP 69K
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 3-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-101
Products Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

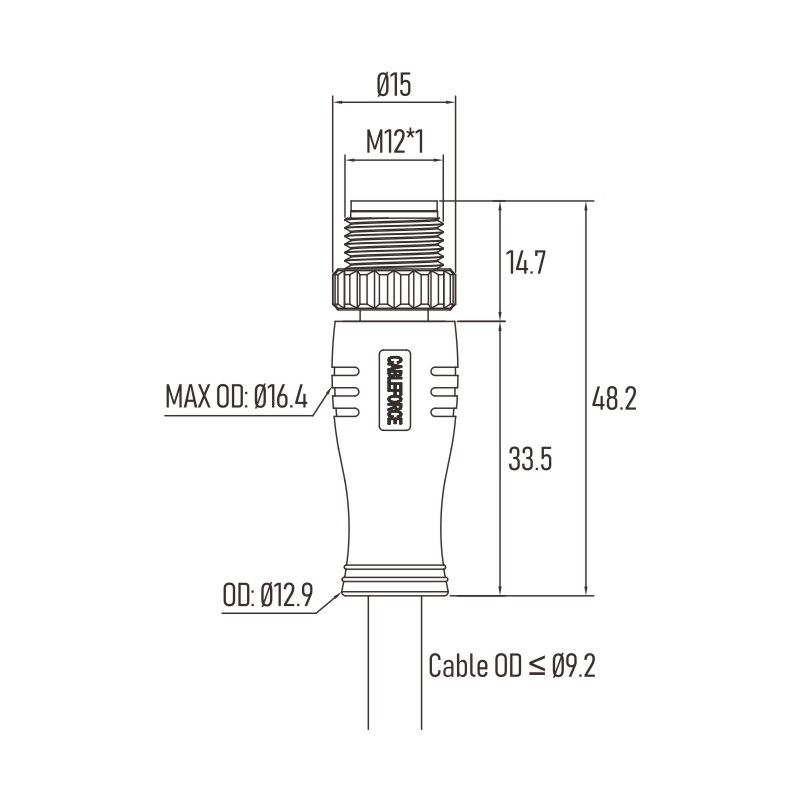

机械参数
Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.

● Cable plugs, field installable plugs, panel receptacles, T-connectors, Y-Splitters are available
● Cable length base on customer requesting
● Degree of protection IP67, IP68, IP69K
● 2, 3, 4, 5, 6, 8, 12, 17 poles are available
● Operating voltage 250V/ 60V/ 30V;

Current range: 4A, 2A, 1.5A
● 360° EMI-Shielding is available
● Anti-vibration locking screw design

CABLEFORCE Products Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
