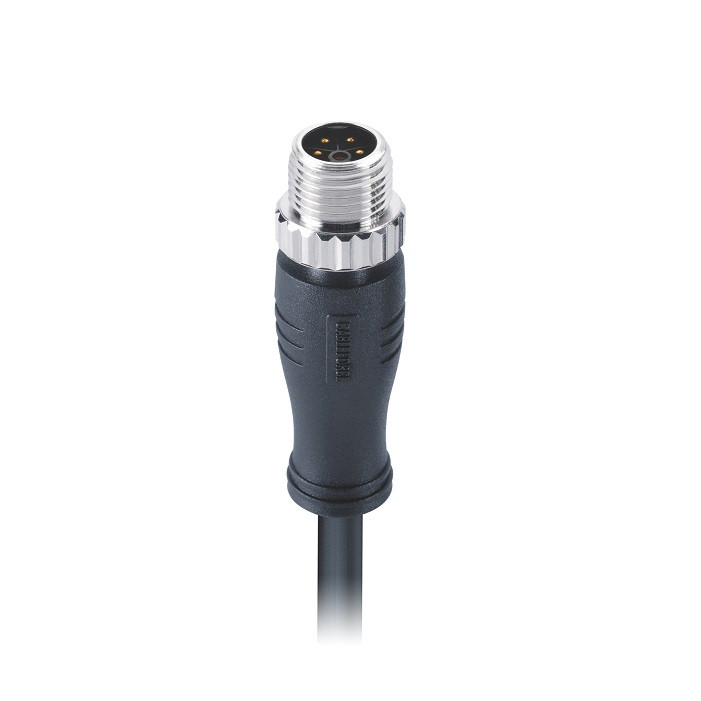

M12 L-Code 5Pin (4+PE) male straight connector, 360° shielded, molded with 5x14AWG cable Cableforce Electronics

M12 L-Code 5Pin (4+PE) male straight connector, 360° shielded, molded with 5x14AWG cable

Part No.:: MC05C1LCLSB-14xx xx

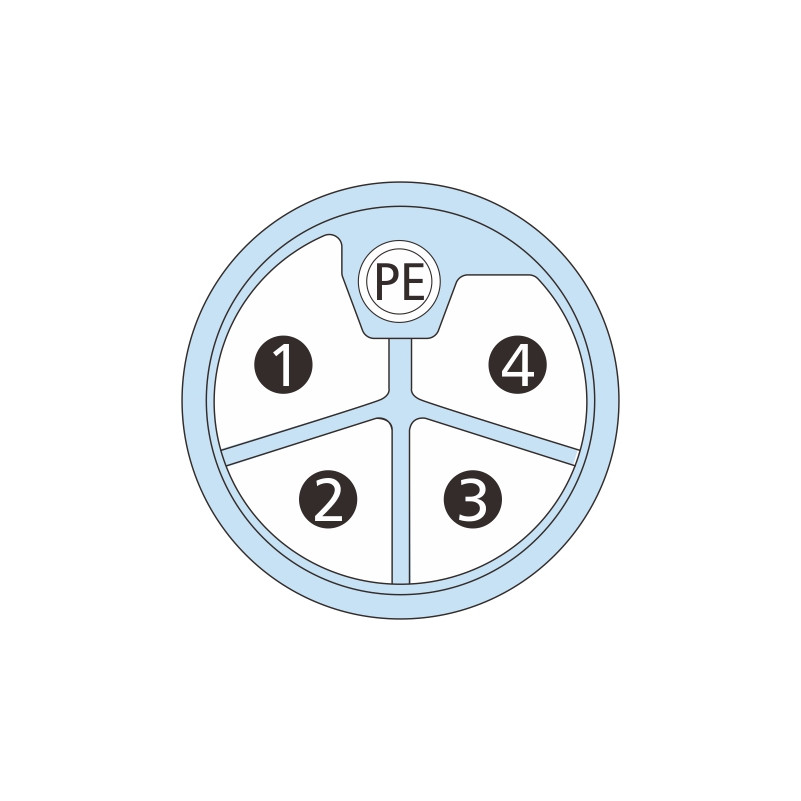

Contacts Poles:: 05 Pin, 4 + PE

Connector Gender:: Male connector

Cable Jacket:: PVC, PUR, halogen-free, Custom cable material

Current Rating:: 16 A

Wire Gauge (size):: 14AWG/ 2.0mm²

Keyway Coding:: L-Coding

EMC Shielding:: 360° fully shielded

Material Stocking：: 2000 sets

Production leadtime：: 28 days

Get Quotation Now !

Product data

Contacts Poles: 05 Pin, 4 + PE

Cable Length: Customized lengthes

Connector Gender: Male connector

Cable Jacket: PVC, PUR, halogen-free, Custom cable material

Current Rating: 16 A

Wire Gauge (size): 14AWG/ 2.0mm²

Voltage Rating: 60V

Wire Insulation: PVC

Keyway Coding: L-Coding

EMC Shielding: 360° fully shielded

Straight/ 90° Angled: 180° Straight

Cable Color: Black

Contacts Termination: Crimping

Temperature Rating: -40°C ~ + 80°C, -40°C ~ + 105°C

Contacts Material: Brass, machined solid pin

Cable Flamability: VW-1

Contacts Plating: 3μ" Gold plating thickness

Cable Features: UV-Resistant, Crosion resistant, Hydrolysis resistant, Oil resistant

Inserts: PA66 + GF

Sealing: O-Ring

Overmolding: TPU

Locking Screws: Brass with nickel plated

Contact Resistance: ≤5mΩ

Insulation Resistance: ≥ 100 MΩ

Protection Degree: IP 67

Pollution Degree: III

Connector Flamability: UL94 V0, UL94 HB

Waterproof Depth: IP67 1m depth 30 minutes

Plug Mating Life: 500 times

Warranty: 2-years quality guarantee period

Compliance: RoHS compliant, REACH compliant

Reference Standard: IEC 61076-2-111

Description

CABLEFORCE has introduced the M12 L-Code 63V/16A DC power supply PROFINET compliant connector which provides high power current ratings combined with IP67 protection degree for application in harsh environmental conditions. Its compact design and high power transmission make it a cost-effective solution for operations that need a reliable, installation space saving power connector.

● L-Code, 5Pin (4+FE)

● Rated: 63V DC/ 12A

● Gold-plated crimp contacts

● PVC, PUR cable with custom specification service

● Panel receptacle with either 14AWG prewired or PCB solder contacts

● Protection degree IP67/IP68

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant，Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
