M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16

  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
  • M12 L-Code 5Pin female PCB panel mount connector front side fastening, PG9/M16
Part No.:
MC05P2LPLBxx
Contacts Poles:
05 Pin, 4 + PE
Connector Gender:
Female connector
Current Rating:
16 A
Keyway Coding:
L-Coding
EMC Shielding:
Un-shielded
Material Stocking:
2000 sets
Production leadtime:
21 days
Product data
Contacts Poles: 05 Pin, 4 + PE
Cable Length: 50 cm
Connector Gender: Female connector
Current Rating: 16 A
Voltage Rating: 60V
Keyway Coding: L-Coding
EMC Shielding: Un-shielded
Straight/ 90° Angled: 180° Straight
Contacts Termination: PCB dip soldering
Temperature Rating: -40°C ~ + 105°C
Contacts Material: Phosphor bronze, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Inserts: PA66 + GF
Sealing: Epoxy resin, O-Ring
Housing/ Outer Shell: Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Panel Cut Size: PG9, M16x1.5
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-111
Panel locking side: Front side fastening the nut

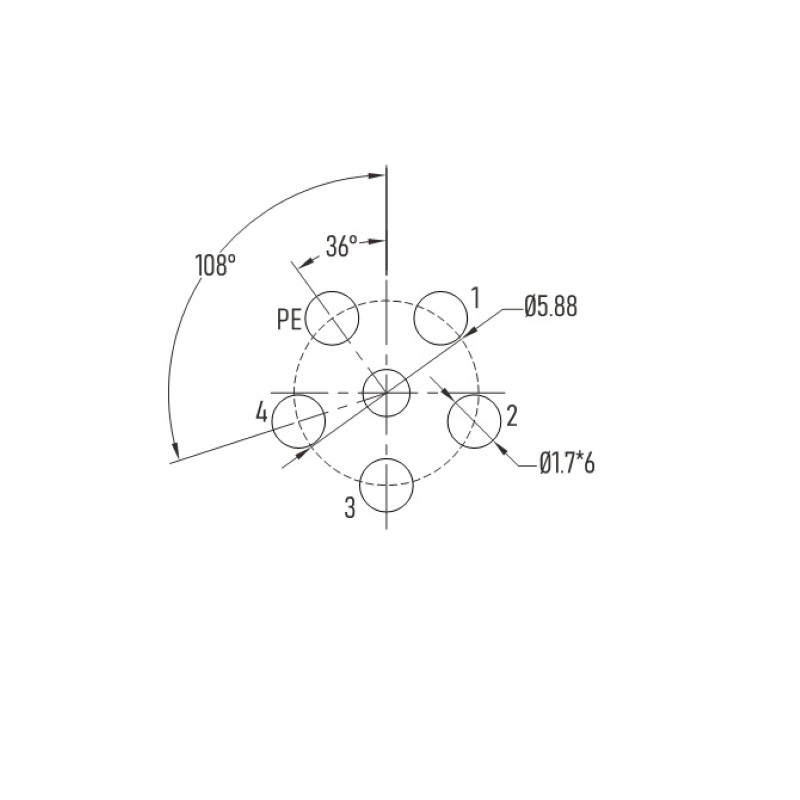

机械参数
Description

CABLEFORCE has introduced the M12 L-Code 63V/16A DC power supply PROFINET compliant connector which provides high power current ratings combined with IP67 protection degree for application in harsh environmental conditions. Its compact design and high power transmission make it a cost-effective solution for operations that need a reliable, installation space saving power connector.


● L-Code, 5Pin (4+FE)

● Rated: 63V DC/ 12A

● Gold-plated crimp contacts

● PVC, PUR cable with custom specification service

● Panel receptacle with either 14AWG prewired or PCB solder contacts

● Protection degree IP67/IP68

CABLEFORCE Products Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
