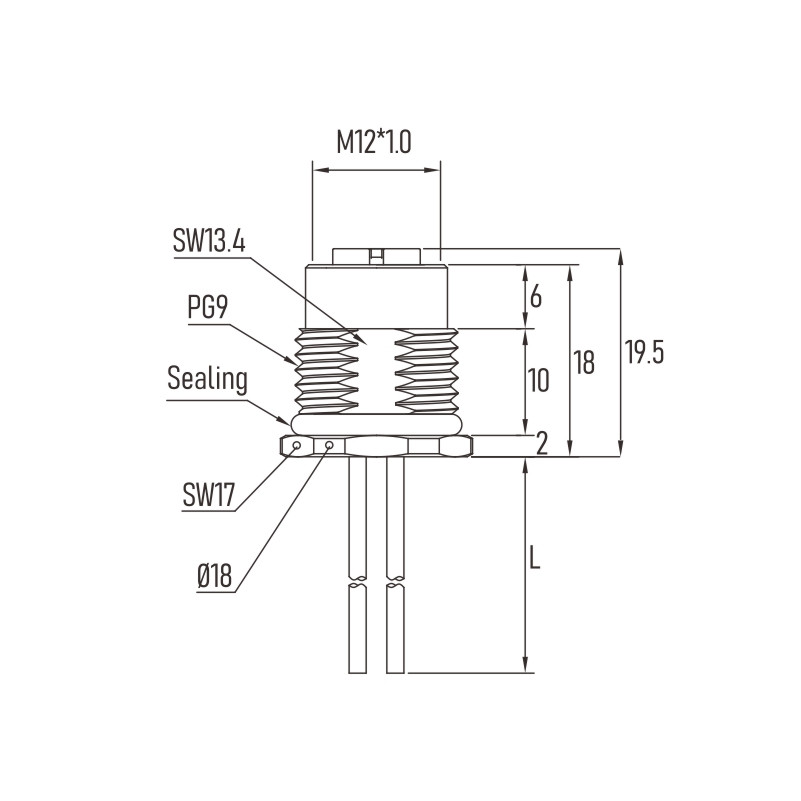

CABLEFORCE has developed M12 T-Code DC power connectors with M12 screw locking, designed for electrical and electronic equipment; CABLEFORCE offers M12 T-Coding cordset premolded cables and panel mount receptacle for flange mounting. The T-Coded connectors are IP67 rated ensuring protection from liquids and debris. Gold plated contacts with crimp termination provide high endurance and low contact resistance electrical performance. The connectors are rated up to 63 V DC and 12 Amps per contact.

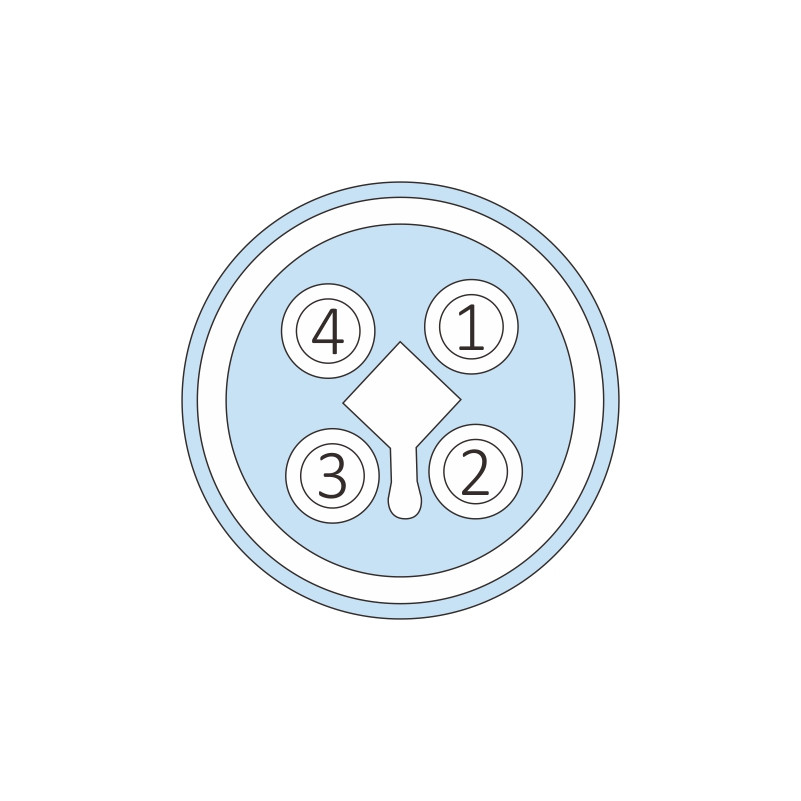

● T-Code, 4Pin
● Rated: 63V DC/ 12A
● PCB contacts or Solder type with (custom
cable or wire specification)
● Brass or Stainless steel screw option
● Protection degree: IP67, IP69K
● Anti-Vibration design
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
