M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16

  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
  • M12 T-Code 4Pin female PCB panel mount connector, front side fastening, PG9/M16
Part No.:
MC04P2LPTBxx
Contacts Poles:
04 Pin, 3 + PE
Connector Gender:
Female connector
Current Rating:
12 A
Keyway Coding:
S-Coding
EMC Shielding:
Half or partial shielded
Material Stocking:
1000 sets
Production leadtime:
21 days
Product data
Contacts Poles: 04 Pin, 3 + PE
Connector Gender: Female connector
Current Rating: 12 A
Voltage Rating: 630V
Keyway Coding: S-Coding
EMC Shielding: Half or partial shielded
Straight/ 90° Angled: 180° Straight
Contacts Termination: PCB dip soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Inserts: PA66 + GF
Sealing: Epoxy resin, O-Ring
Housing/ Outer Shell: Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Panel Cut Size: PG9, M16x1.5
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 3-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-111
Products Certification: CE/ EMC
Panel locking side: Front side fastening the nut

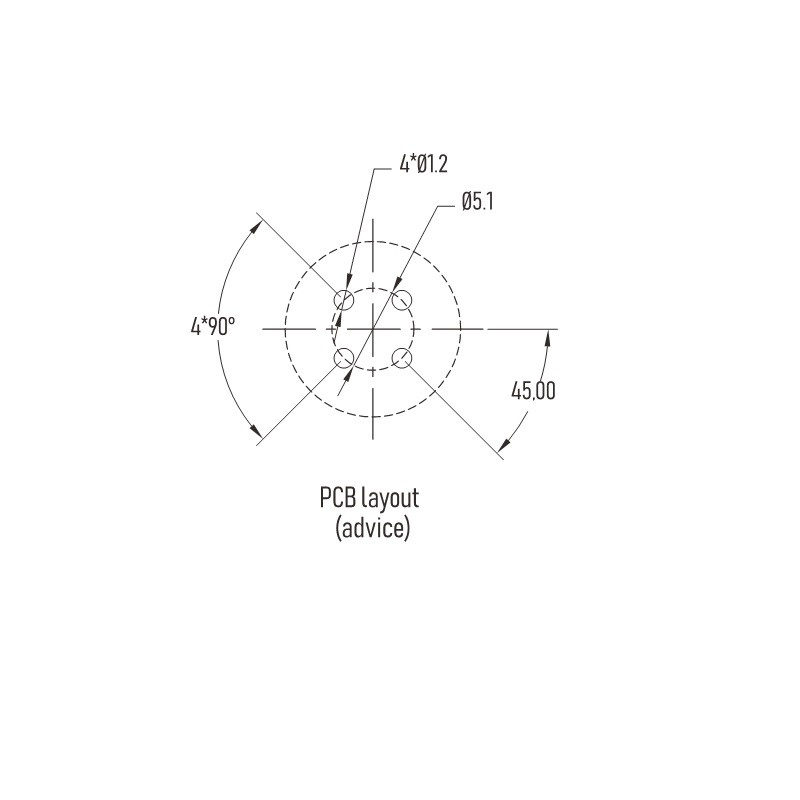

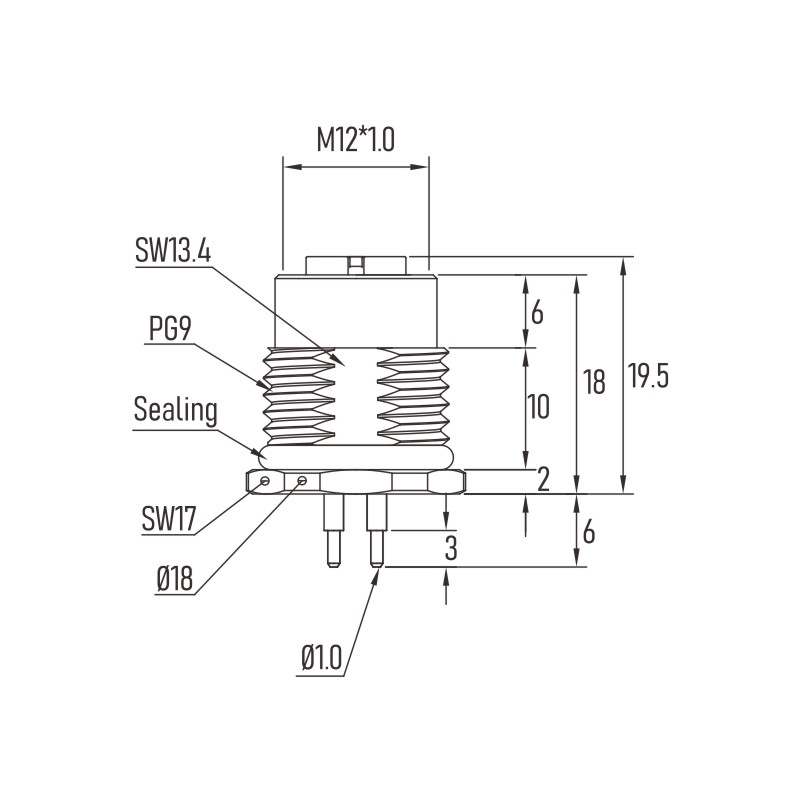

机械参数
Description

CABLEFORCE has developed M12 S-Code AC power connectors with M12 screw locking, designed for electrical and electronic equipment; CABLEFORCE offers M12 S-Coding cordsets premolded cables and panel mount receptacle for flange mounting. The S-Coded connectors are IP67 rated ensuring protection from liquids and debris. Gold plated contacts with crimp termination provide high endurance and low contact resistance electrical performance. The connectors are rated up to 630 V AC and 12 Amps per contact.


● S-Code, 4Pin (3+PE)
● Rated: 630V AC/ 12A

● PCB contacts or Solder type with (custom cable or wire specification)
● Brass or Stainless steel screw option
● Protection degree: IP67, IP69K

● Anti-Vibration design


Products Features
● Tailor made material to meet various application conditions

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.

Counterpart connectors
