M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable

  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
  • M16 A-Code 12Pin female straight shielded connector molded with 12x22AWG cable
Part No.:
MD12C2LSASB-22xx xx
Contacts Poles:

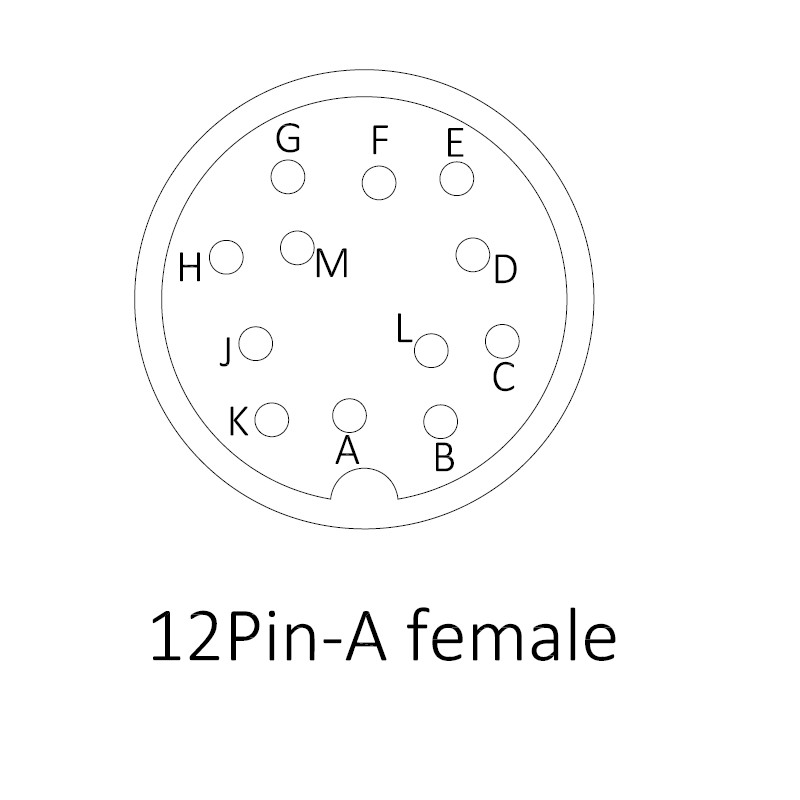

12 Pin
Connector Gender:
Female connector
Cable Jacket:
PVC, PUR, halogen-free, Custom cable material
Current Rating:
4 A
Wire Gauge (size):
22AWG/ 0.34mm²
Keyway Coding:
A-Coding
EMC Shielding:
360° fully shielded
Material Stocking:
1000 sets
Production leadtime:
28 days
Product data
Contacts Poles: 12 Pin
Cable Length: Customized lengthes
Connector Gender: Female connector
Cable Jacket: PVC, PUR, halogen-free, Custom cable material
Current Rating: 4 A
Wire Gauge (size): 22AWG/ 0.34mm²
Voltage Rating: 60V
Wire Insulation: PVC
Keyway Coding: A-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Black
Contacts Termination: Soldering
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant, Crosion resistant, Hydrolysis resistant, Oil resistant
Inserts: PA66 + GF
Sealing: O-Ring
Overmolding: TPU
Housing/ Outer Shell: TPU, Brass with nickel plasting
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-106

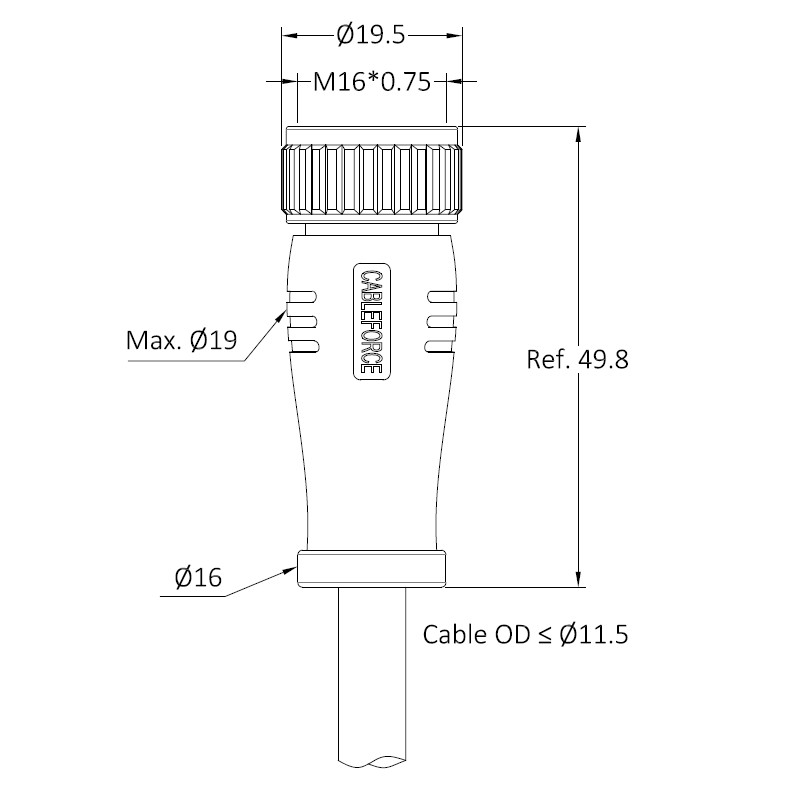

机械参数
Description

M16 Connectors is the circular connectors with threaded joint M16 designed to IEC 61076-2-106 and IEC 60130-9 with a robust metal housing and environmental protection rating of IP67 when mated, M16 connector is an ideal solution for power and signal transmission in harsh environments and industrial applications.


● Cableforce offers pole variants of 5Pin, 6Pin, 7Pin, 12Pin, 14 Pins
● Voltage rating: 300V, 125V, 60V
● Current rating: 8A, 4A
● Custom cable specification and lengths, molded with PVC, PUR or TPE cable
● The panel mount receptacle counter part with PCB contacts or Solder cup
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Drag China cable options are available
● IP67 degree of protection
● Robust metal connector shells
● Excellent EMI shielding

CABLEFORCE Products Features
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
