M12 X-Code 8Pin male panel receptacle with PCB contacts, front side fastening, PG9 Cableforce Electronics

M12 X-Code 8Pin male panel receptacle with PCB contacts, front side fastening, PG9

Part No.:: MC08P1LPXSB16

Contacts Poles:: 08 Pin

Connector Gender:: Male connector

Current Rating:: 0.5 A

Wire Gauge (size):: 26AWG/ 0.14mm²

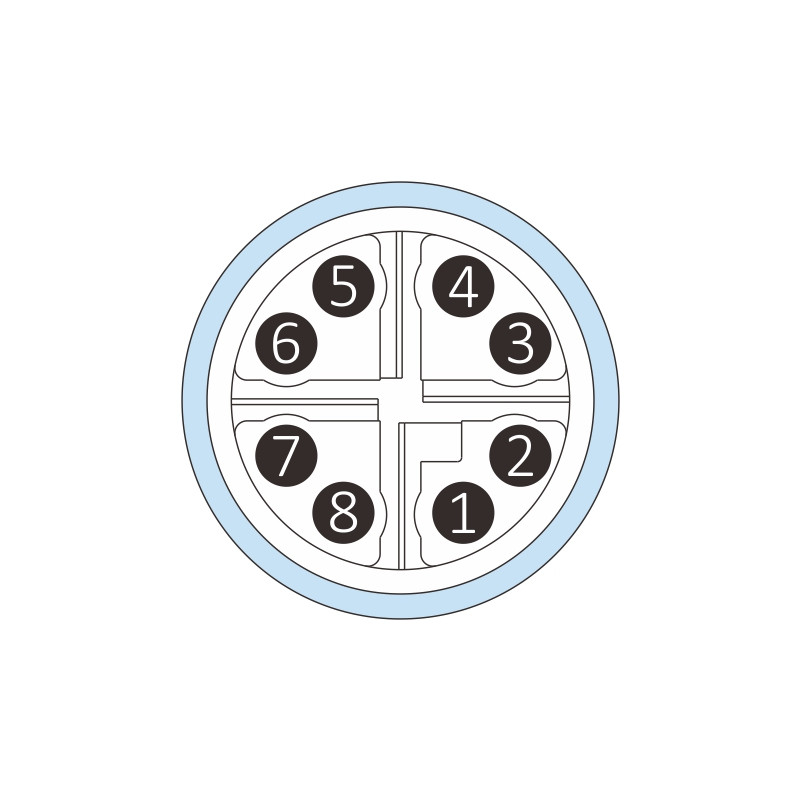

Keyway Coding:: X-Coding

EMC Shielding:: 360° fully shielded

Material Stocking：: 200 sets

Production leadtime：: 21 days

Get Quotation Now !

Product data

Contacts Poles: 08 Pin

Connector Gender: Male connector

Current Rating: 0.5 A

Wire Gauge (size): 26AWG/ 0.14mm²

Voltage Rating: 48V

Keyway Coding: X-Coding

EMC Shielding: 360° fully shielded

Straight/ 90° Angled: 180° Straight

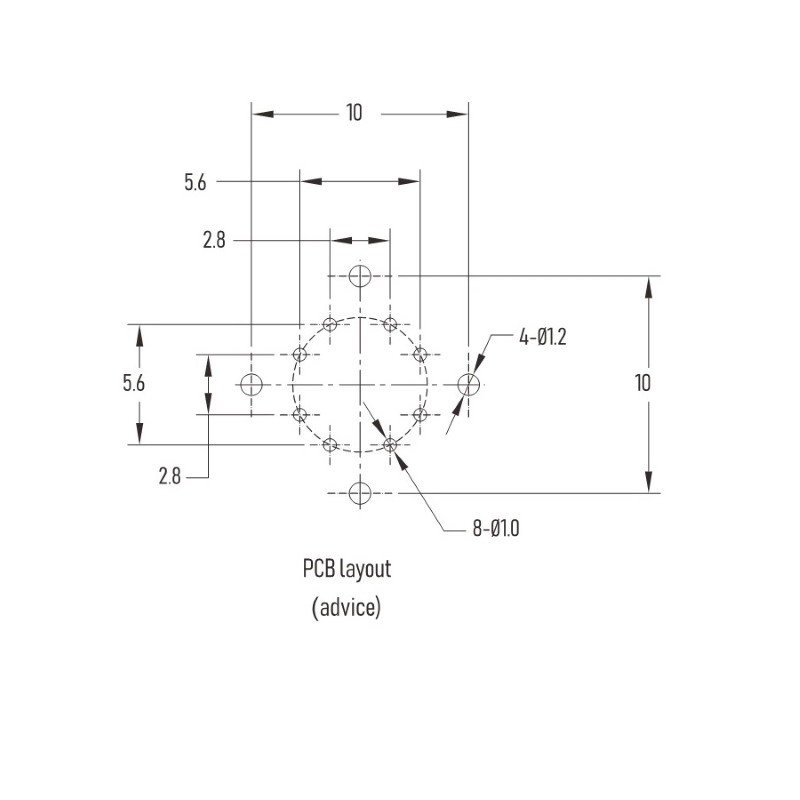

Contacts Termination: PCB dip soldering

Temperature Rating: -40°C ~ + 105°C

Contacts Material: Brass, machined solid pin

Contacts Plating: 30μ" Gold plating thickness

Inserts: TPU + GF

Sealing: Epoxy resin, O-Ring

Housing/ Outer Shell: Brass with nickel plasting

Locking Screws: Brass with nickel plated

Contact Resistance: ≤5mΩ

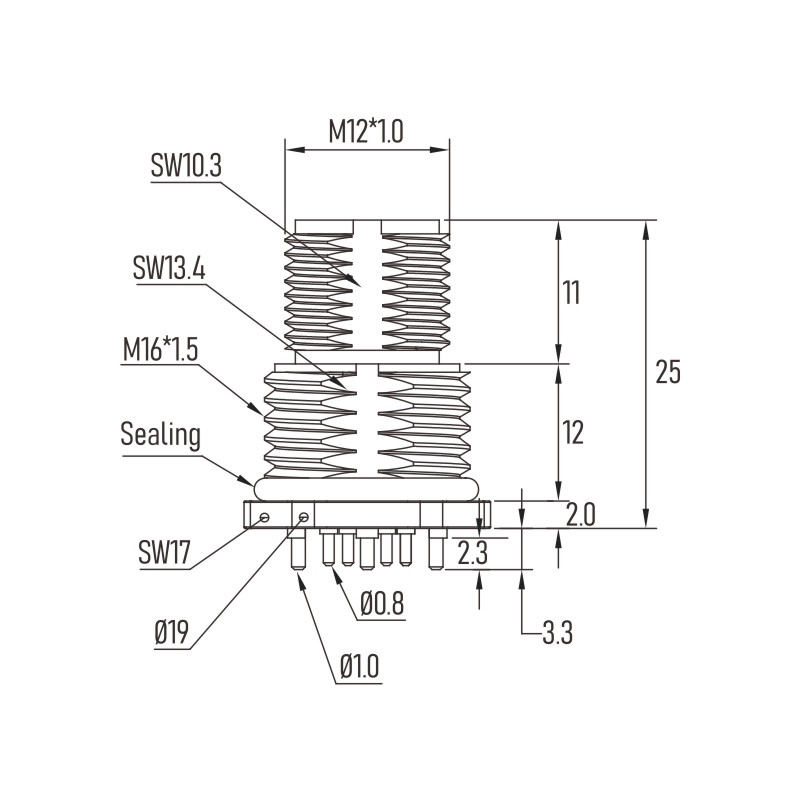

Panel Cut Size: M16x1.5

Protection Degree: IP 67

Pollution Degree: III

Connector Flamability: UL94 V0

Waterproof Depth: IP67 1m depth 30 minutes

Plug Mating Life: 500 times

Warranty: 2-years quality guarantee period

Compliance: RoHS compliant, REACH compliant

Reference Standard: IEC 61076-2-109

Products Certification: CE/ EMC, IP67

Panel locking side: Front side fastening the nut

Description

The M12 X-coding connector conforms to IEC 61076-2-109; it meet Cat 6A specifications with data transmission rates up to 10 Gbps, these high-speed connectors are designed for industrial communications and networks, video surveillance and other applications requiring a fast and reliable Ethernet connection. CABLEFORCE offers M12 X-Coding cable molded cordsets and M12 X-Coding PCB panel mount receptacles as well as male M12 X-Code to RJ45 male connector with different customized cable material and cable specifications.

● Cable available with PUR, PVC, LSZH, NFPA130 material

● Custom cable specification and lengths

● Rated: 48V/ 0.5A

● Up to 500Mhz/ 10Gbps

● Protection degree IP67

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant，Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
