M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable

  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
  • M12 X-Code 8Pin female right angled connector molded with 4x2x26AWG Profinet/Ethernet cable
Part No.:
MC08C2SRXSB-26xx xx-PFN
Contacts Poles:
08 Pin
Connector Gender:
Female connector
Cable Jacket:
PVC, PUR, halogen-free, Custom cable material
Current Rating:
0.5 A
Wire Gauge (size):
26AWG/ 0.14mm²
Keyway Coding:
X-Coding
EMC Shielding:
360° fully shielded
Material Stocking:
2000 sets
Production leadtime:
21 days
Product data
Contacts Poles: 08 Pin
Cable Length: Customized lengthes
Connector Gender: Female connector
Cable Jacket: PVC, PUR, halogen-free, Custom cable material
Current Rating: 0.5 A

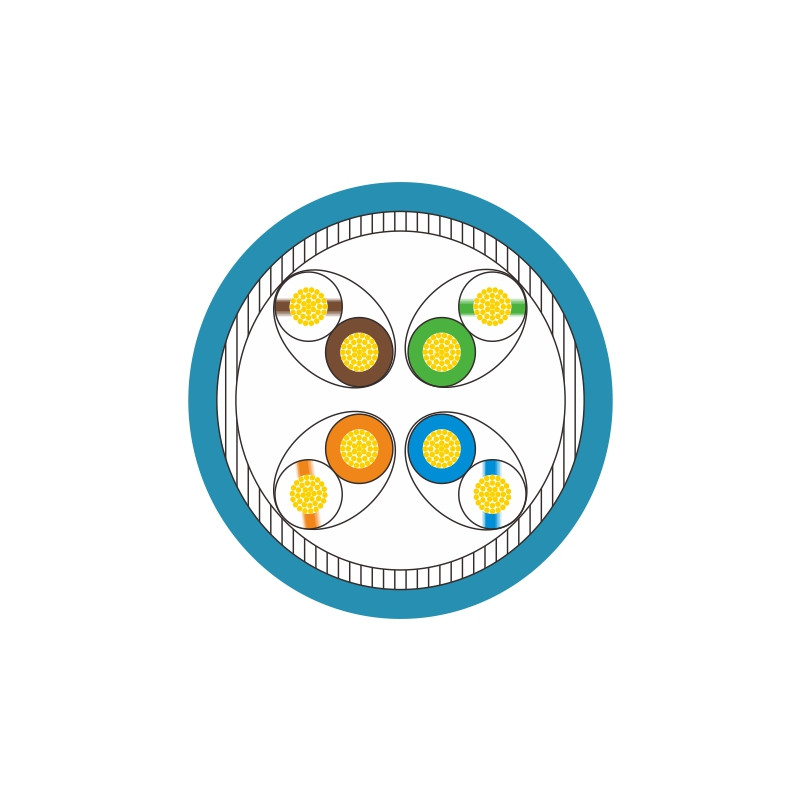

Wire Gauge (size): 26AWG/ 0.14mm²
Voltage Rating: 48V
Wire Insulation: Foamed PE

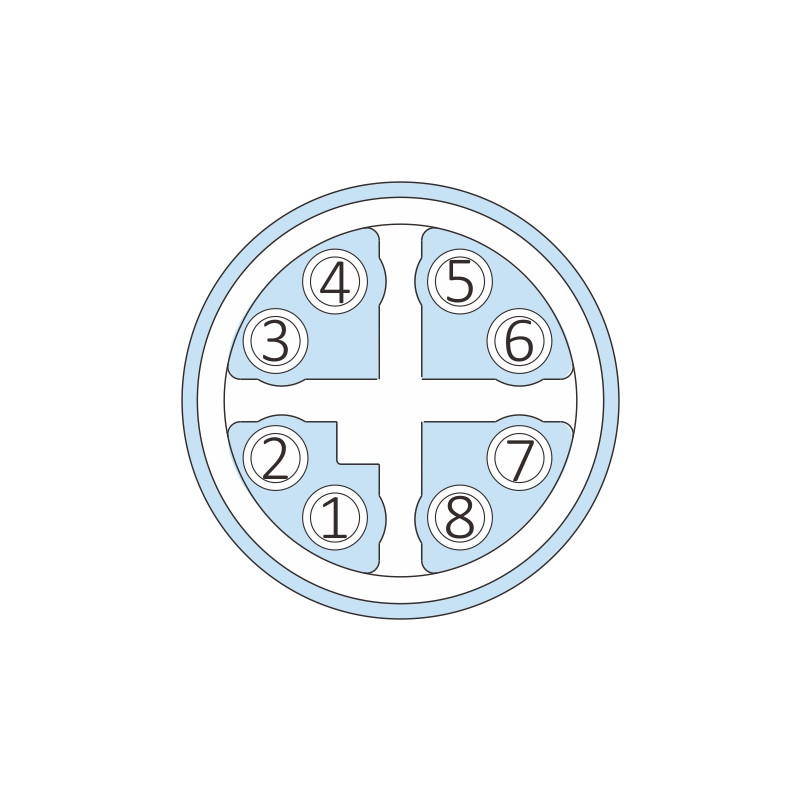

Keyway Coding: X-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 90° right angled
Cable Color: Black, Green, Lake blue (dark green)
Contacts Termination: Crimping, Soldering
Temperature Rating: -25°C ~ + 70°C, -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin
Cable Flamability: VW-1, CM
Contacts Plating: 15μ" Gold plating thickness
Cable Features: UV-Resistant, Hydrolysis resistant, Oil resistant
Inserts: TPU + GF
Sealing: O-Ring
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0, UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant, REACH compliant
Reference Standard: IEC 61076-2-109, Profinet, EtherCAT
Products Certification: CE/ EMC, IP67

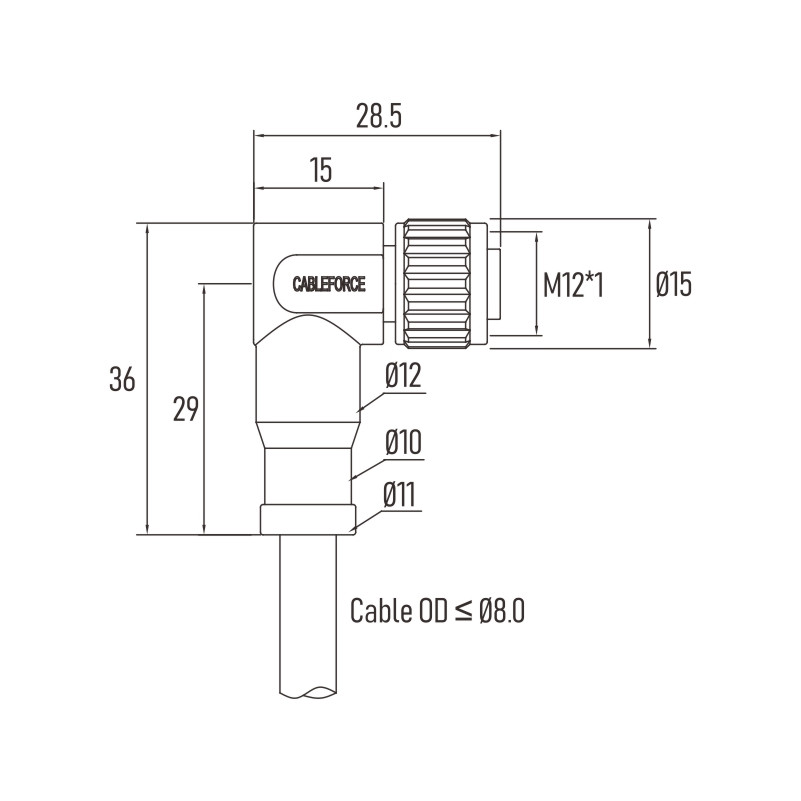

机械参数
Description

The M12 X-coding connector conforms to IEC 61076-2-109; it meet Cat 6A specifications with data transmission rates up to 10 Gbps, these high-speed connectors are designed for industrial communications and networks, video surveillance and other applications requiring a fast and reliable Ethernet connection. CABLEFORCE offers M12 X-Coding cable molded cordsets and M12 X-Coding PCB panel mount receptacles as well as male M12 X-Code to RJ45 male connector with different customized cable material and cable specifications.


● Cable available with PUR, PVC, LSZH, NFPA130 material

● Custom cable specification and lengths

● Rated: 48V/ 0.5A

● Up to 500Mhz/ 10Gbps

● Protection degree IP67

M12 X-Code molding cable

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
