M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable

  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
  • M12 X-Code 8Pin female to RJ45 female, molded 10Gbps Cat 6A 4x2x26AWG PUR Ethernet cable
Part No.:
RJ6AC2-MC08C2LSXSB26RLBxx
Cable Length:
Customized lengthes
Connector Gender:
Female to female connector, double ended
Wire Gauge (size):
26AWG/ 0.14mm²
Keyway Coding:
X-Coding
EMC Shielding:
360° fully shielded
Straight/ 90° Angled:
180° Straight
Material Stocking:
1000 sets
Production leadtime:
35 days
Product data

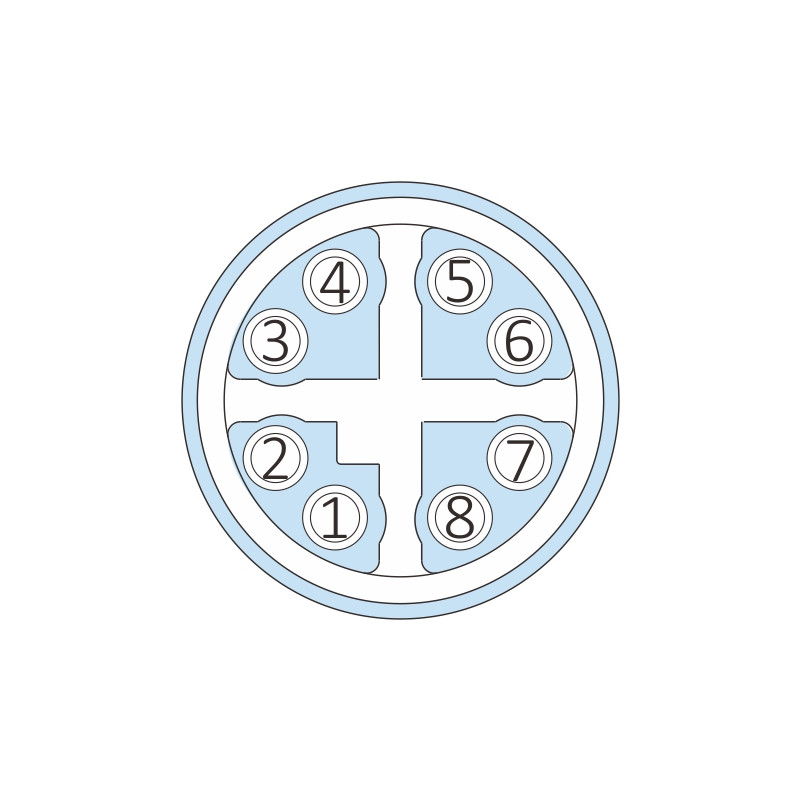

Contacts Poles: 08 Pin
Cable Length: Customized lengthes
Connector Gender: Female to female connector, double ended
Cable Jacket: PUR, halogen-free
Current Rating: 1 A
Wire Gauge (size): 26AWG/ 0.14mm²
Voltage Rating: 48V
Wire Insulation: Foamed PE
Keyway Coding: X-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 180° Straight
Cable Color: Lake blue (dark green)
Contacts Termination: Crimping, IDC piercing
Temperature Rating: -40°C ~ + 80°C
Contacts Material: Phosphor bronze, machined solid pin, Brass, machined solid pin
Cable Flamability: VW-1
Contacts Plating: 3μ" Gold plating thickness
Cable Features: Anti-Vibration, Hydrolysis resistant, Oil resistant
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant
Reference Standard: IEC 61076-2-101, Profinet, EtherCAT
Products Certification: UL Certified, CE/ EMC, IP67
Charateristic Impedance: 100Ω +/-12
机械参数
Description

CABLEFORCE offers tailor-made industrial PROFINET connecting cable cordsets. We are also supplying of other fieldbus cables compatible with most major fieldbus protocols, including CANopen, PROFIBUS, DeviceNet™, CAN Bus, CC-Link and ASI Bus and industrial EtherCAT, EtherNet/IP™ and other industrial Ethernet protocols with bandwidth from Cat 5e, Cat 6A to Cat7.

We provide customers with the following cable custom services:

Custom cable color and length, custom print and labeling as well as packaging
Custom Material: Extreme Temperature Resistant, High Flexible, UV Resistance, Oil Resistance, LSZH, Hydrolysis Resistance, Anti-Corrosion;
Connector Configuration: Single Ended, Double Ended, multi Ended, multi-core wire, mixed joint and other configurations;
Mechanical Reliable: Mating Life, EMI/EMC Shielding, Waterproof, Dustproof, Anti Vibration, Abrasion Resistant, Bending Endurance, Drag Chain, Welding resistant, etc.;
Transmission Performance: Bandwidth, Voltage and Current rating, Impedance and Measurement Accuracy, etc.
