M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable

  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
  • M12 D-Code 4Pin male right angled connector molded with 4x22AWG Profinet/Ethernet cable
Part No.:
MC04C1RSDSB-22xx xx-PFN

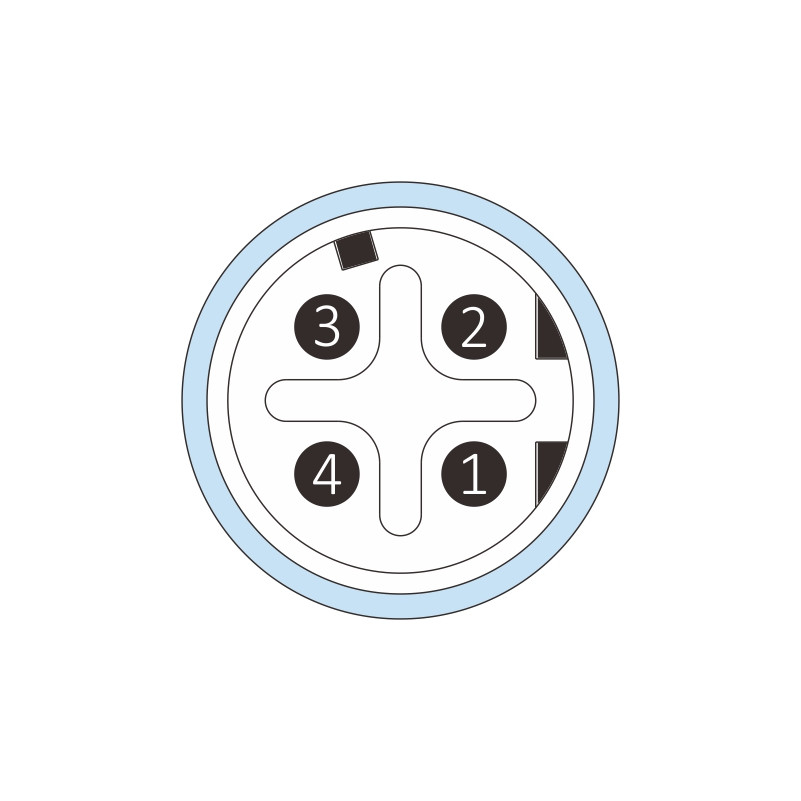

Contacts Poles:
04 Pin
Connector Gender:
Male connector

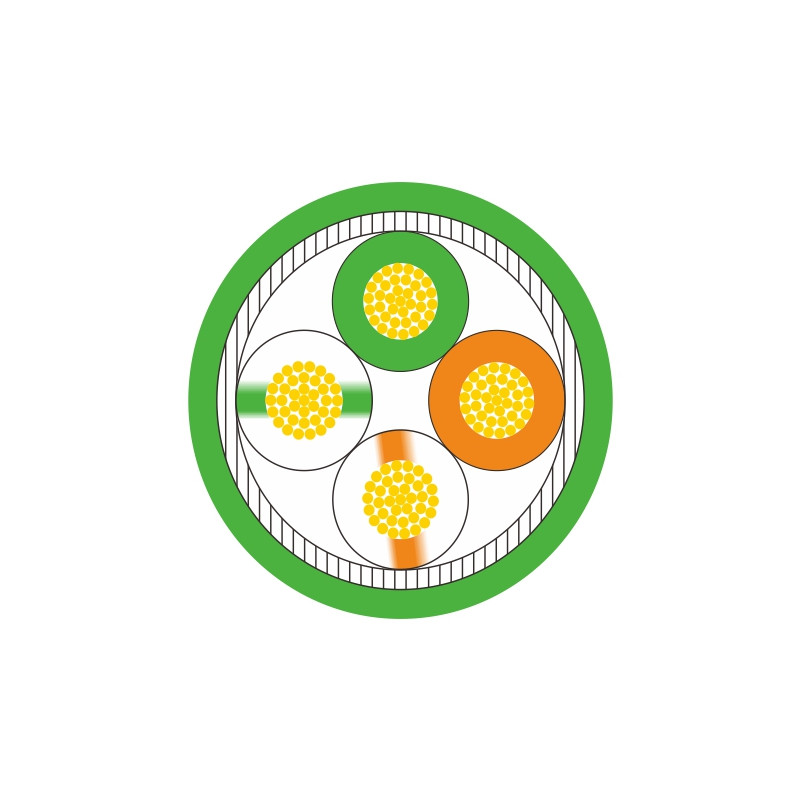

Cable Jacket:
PVC, PUR, halogen-free, Custom cable material
Current Rating:
4 A
Wire Gauge (size):
22AWG/ 0.34mm²
Keyway Coding:
D-Coding
EMC Shielding:
360° fully shielded
Material Stocking:
2000 sets
Production leadtime:
21 days
Product data
Contacts Poles: 04 Pin
Cable Length: Customized lengthes
Connector Gender: Male connector
Cable Jacket: PVC, PUR, halogen-free, Custom cable material
Current Rating: 4 A
Wire Gauge (size): 22AWG/ 0.34mm²
Voltage Rating: 60V, 250V
Wire Insulation: HDPE
Keyway Coding: D-Coding
EMC Shielding: 360° fully shielded
Straight/ 90° Angled: 90° right angled
Cable Color: Black, Green, Lake blue (dark green)
Contacts Termination: Soldering
Temperature Rating: -25°C ~ + 70°C, -40°C ~ + 80°C
Contacts Material: Brass, machined solid pin
Cable Flamability: VW-1, CM
Contacts Plating: 3μ" Gold plating thickness
Cable Features: UV-Resistant, Anti-Vibration, Hydrolysis resistant, Oil resistant
Inserts: TPU + GF
Sealing: O-Ring
Overmolding: TPU
Locking Screws: Brass with nickel plated
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥ 100 MΩ
Protection Degree: IP 67
Pollution Degree: III
Connector Flamability: UL94 V0, UL94 HB
Waterproof Depth: IP67 1m depth 30 minutes
Plug Mating Life: 500 times
Warranty: 2-years quality guarantee period
Compliance: RoHS compliant, REACH compliant
Reference Standard: IEC 61076-2-101, Profinet, EtherCAT
Products Certification: CE/ EMC, IP67

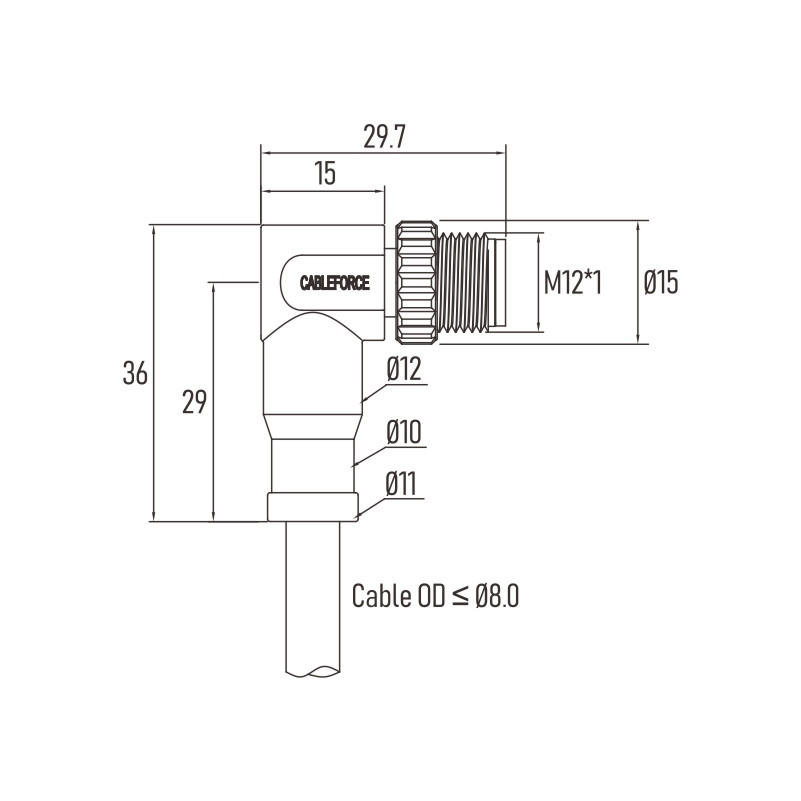

机械参数
Description

The M12 metric size D-Coding connectors, it is commonly used connector in the Fieldbus cabling system, mainly designed and developed for industrial Ethernet/ Profinet cabling. M12 D-Coding connector designed with double keyway coding structure which differentiates itself from A, B, C, S, T, K, L-Codings.

● Cable plugs, field installable plugs, panel receptacles are available
● Cable length, LSZH, NFPA130 railway cable upon customer requesting
● Degree of protection IP67
● 4 poles per connector
● Operating voltage 250V; Current range: 4A
● 360° EMI-Shielded
● Anti-vibration locking screw design

M12 D-Code molding cable

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
